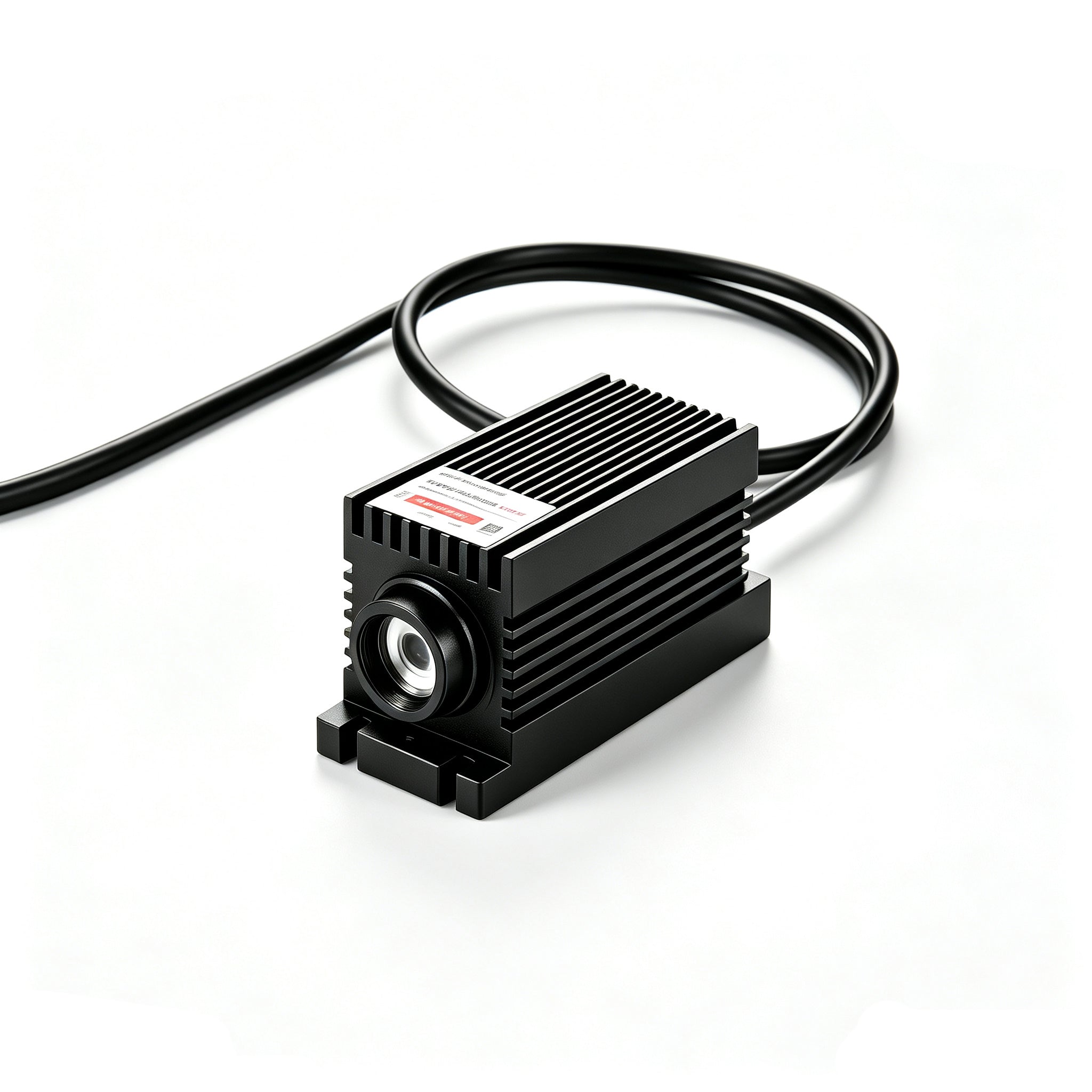

LASER TREE 488nm 10mW/20mW/50mW Blue Semiconductor Laser

Laser Specifications

LT-LM-488-10~50M-NL.pdf

Features

• Product Name: LT-LM-488-10~50M-NL
• Output Wavelength: 488±5nm
• Output Power: 10mW, 20mW, 50mW
• Spatial mode: Single-mode
• Operating mode: CW or Modulation
• Modulation: CW, Analog & TTL modulation 0~30 kHz
• Beam Diameter(1/e²): 4.5±0.5 mm
• Beam Divergence (Full angle): 0.3±0.05 mrad
• Power Stability:  <3% per 4 hrs
• Warm Up Time: <1 minutes
• MTTF(mean time to failure): 10000 hrs

Applications

• Lidar
• Thermal printing
• Material Inspection
• Scanning Biochemistry
• Laser Alignment
