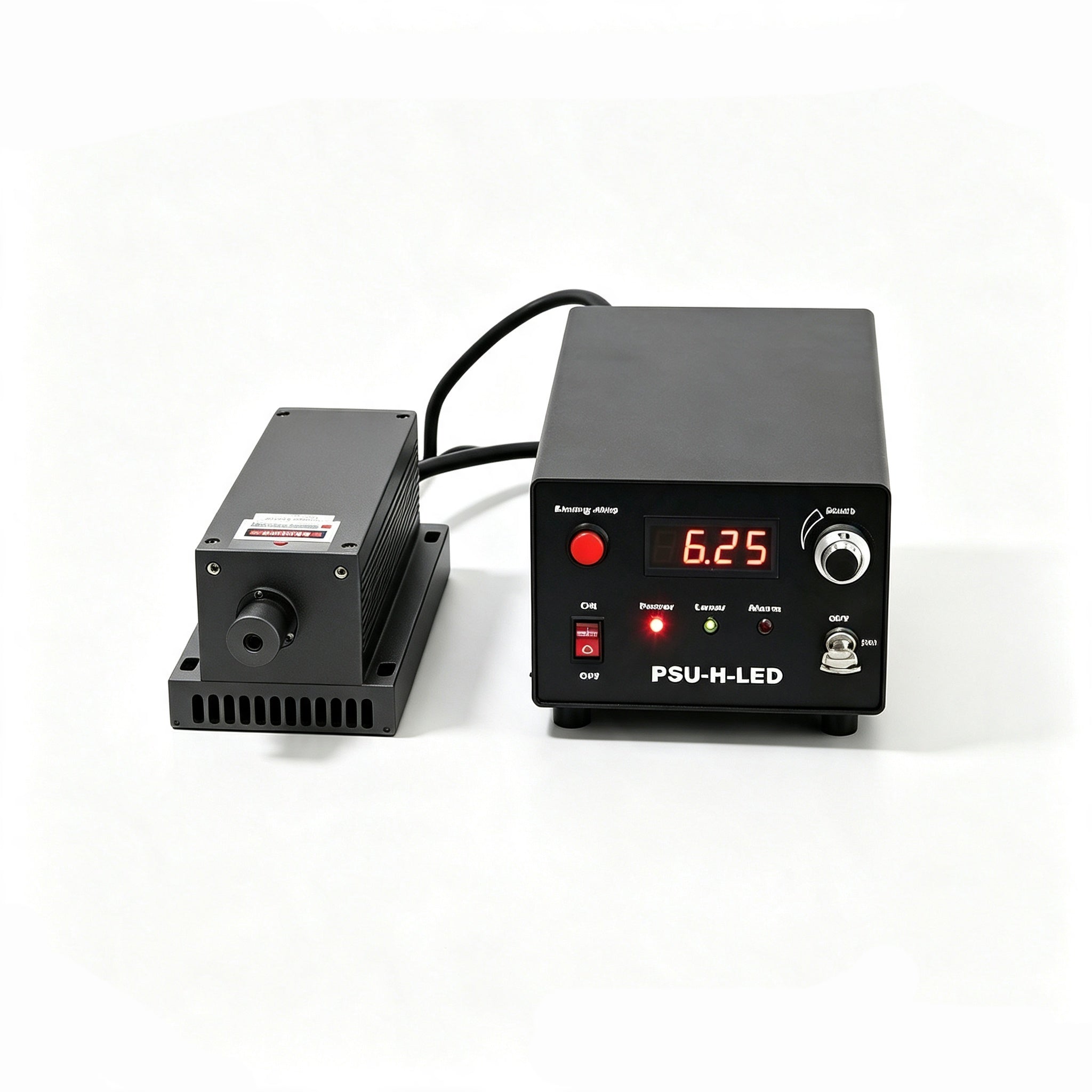

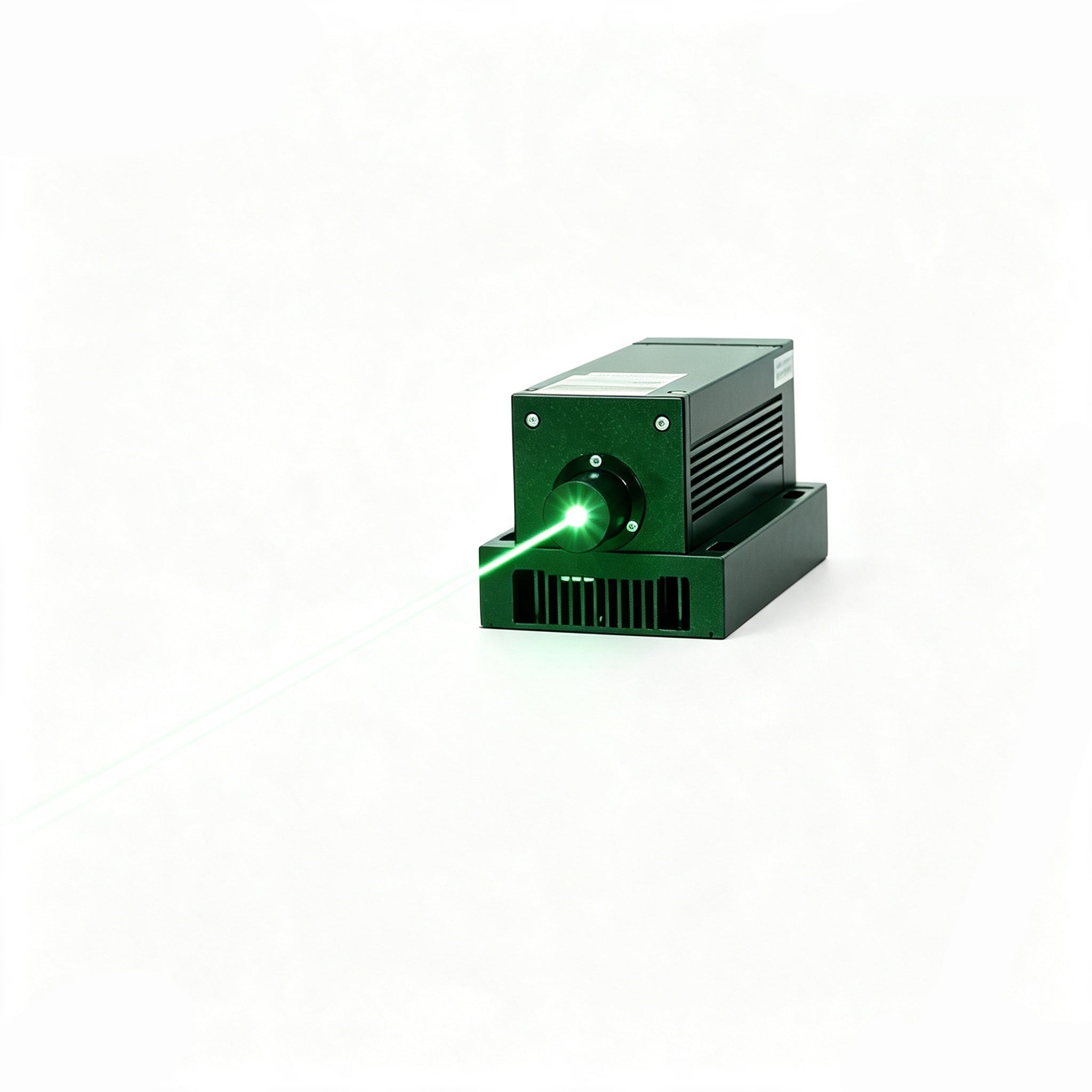

LASER TREE 532nm 500mW/800mW/1000mW/2000mW/2500mW Green Laser Pumped Solid State Laser
LASER TREE 532nm 500mW/800mW/1000mW/2000mW/2500mW Green Laser Pumped Solid State Laser
LASER TREE 532nm 500mW/800mW/1000mW/2000mW/2500mW Green Laser Pumped Solid State Laser
LASER TREE 532nm 500mW/800mW/1000mW/2000mW/2500mW Green Laser Pumped Solid State Laser
LASER TREE

LASER TREE 532nm 500mW/800mW/1000mW/2000mW/2500mW Green Laser Pumped Solid State Laser

セール価格$3,169.00
Wavelength: 532nm
Power: 500mW
Power Supply: OEM Power Supply

Laser Specifications

LT-LM-PUMP-532-500~2500M-F.pdf

Features

  • Product Name: LT-LM-PUMP-532-500~2500M-F
  • Output Wavelength: 532±1nm
  • Output Power: 500mW, 800mW, 1000mW, 2000mW, 2500mW
  • Spatial mode: TEM00
  • Operating mode: CW or Modulation
  • Modulation: CW, Analog & TTL modulation 0~30 kHz
  • Beam Diameter(1/e²): 1.2~1.5mm
  • Beam Divergence (Full angle): <1.2 mrad
  • Power Stability:  <3% per 2 hrs
  • Warm Up Time: <5 minutes
  • MTTF(mean time to failure): 10000 hrs

Applications

  • Lidar
  • Thermal printing
  • Material Inspection
  • Scanning Biochemistry
  • Laser Alignment
