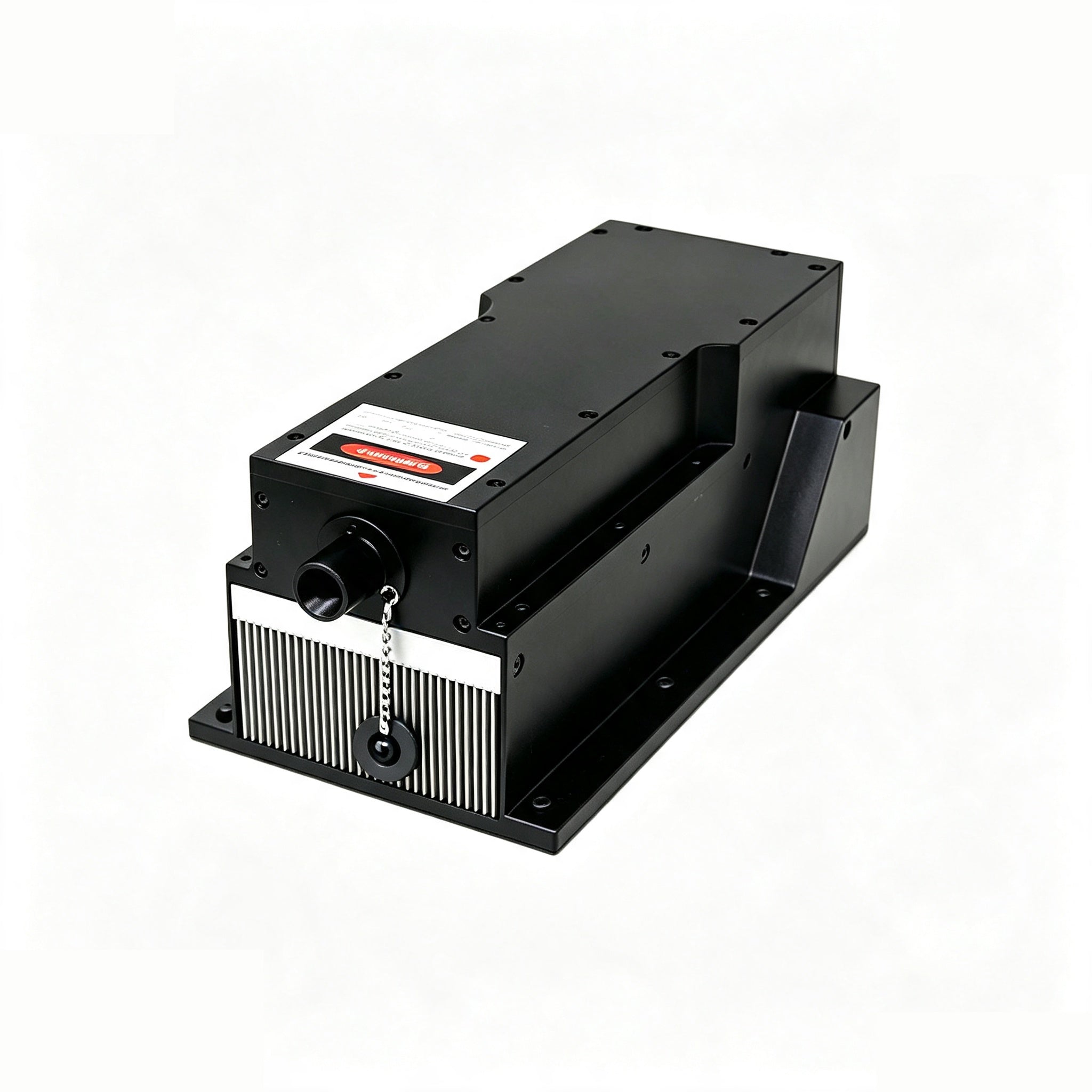

LASER TREE 532nm 6W/7W/8W/9W/10W/18W/20W/30W Green Diode Pumped Solid-State Laser

Laser Specifications

LT-LM-PUMP-532-6~30W-W.pdf

Features

• Product Name: LT-LM-PUMP-532-6~30W-W
• Output Wavelength: 532±1nm
• Output Power: 6W, 7W, 8W, 9W, 10W, 18W, 20W, 30W
• Spatial mode: Near TEM00
• Operating mode: CW or Modulation
• Modulation: CW, Analog & TTL modulation 0~30 kHz
• Beam Diameter(1/e²): 4mm
• Beam Divergence (Full angle): 2 mrad
• Power Stability:  <5% per 4 hrs
• Warm Up Time: <5 minutes
• MTTF(mean time to failure): 10000 hrs

Applications

• Lidar
• Thermal printing
• Material Inspection
• Scanning Biochemistry
• Laser Alignment
