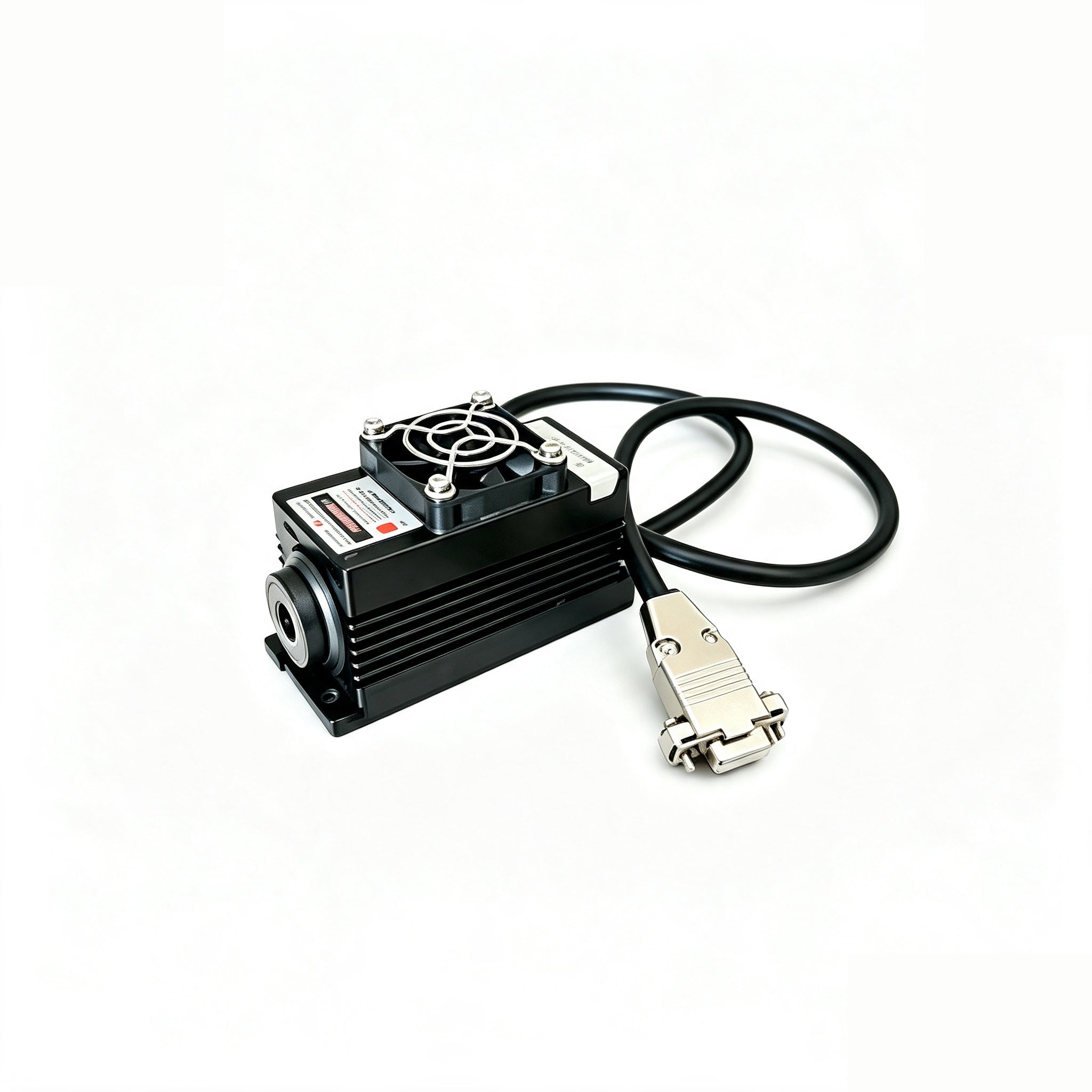

LASER TREE 555nm 15mW Diode Pumped Solid State DPSS Laser

Laser Specifications

LT-LM-PUMP-555-15M-ML.pdf

Features

• Product Name: LT-LM-PUMP-555-15M-ML
• Output Wavelength: 555±1nm
• Output Power: 15mW
• Spatial mode: TEM00
• Operating mode: CW or Modulation
• Modulation: CW, Analog & TTL modulation 0~30 kHz
• Beam Diameter(1/e²): <2.0mm
• Beam Divergence (Full angle): <1.5 mrad
• Power Stability:  <3% per 4 hrs
• Warm Up Time: <3 minutes
• MTTF(mean time to failure): 10000 hrs

Applications

• Lidar
• Thermal printing
• Material Inspection
• Scanning Biochemistry
• Laser Alignment
