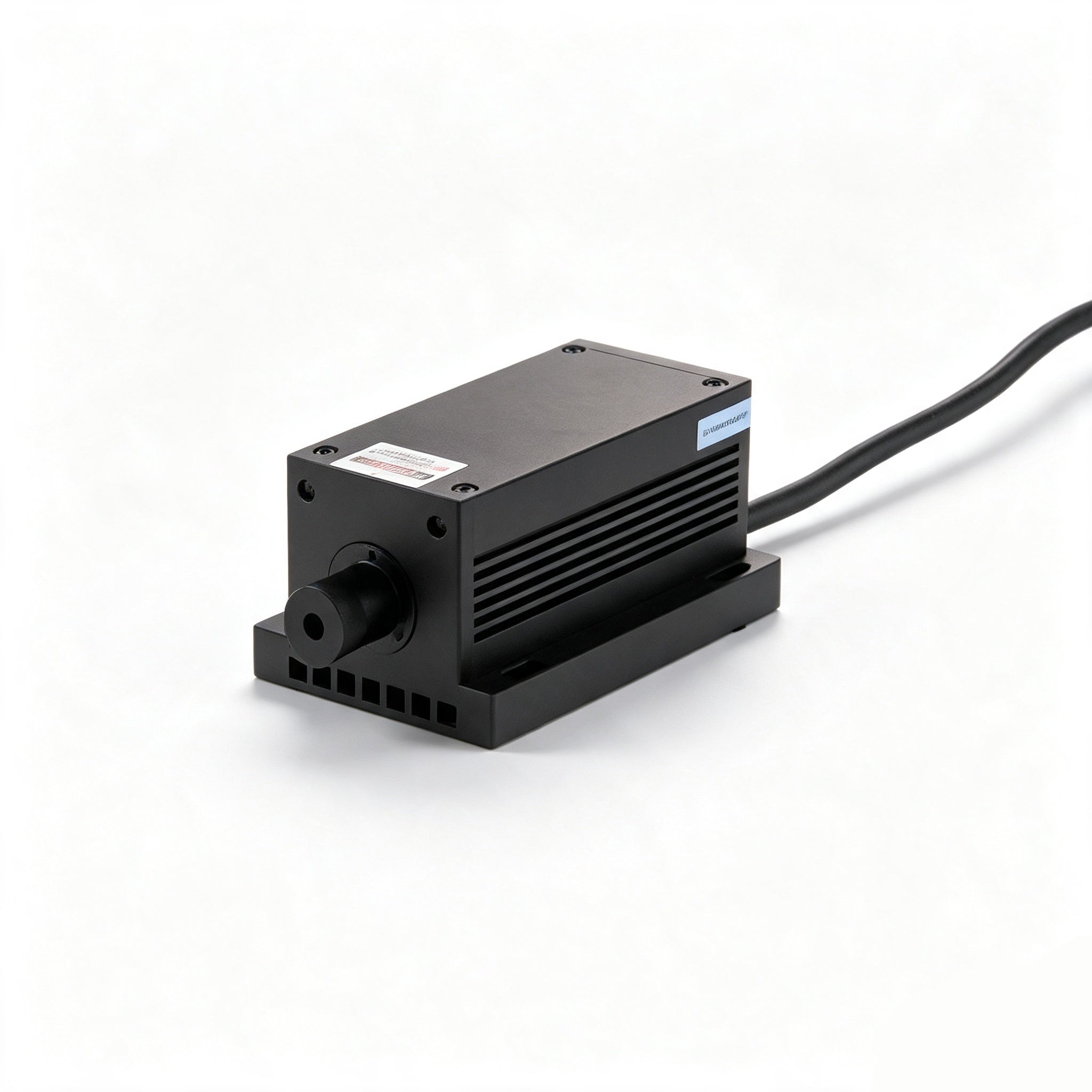

LASER TREE 671nm 500mW/600mW/800mW/900mW/1000mW Red Laser Diode Pumped Solid State laser
LASER TREE 671nm 500mW/600mW/800mW/900mW/1000mW Red Laser Diode Pumped Solid State laser
LASER TREE 671nm 500mW/600mW/800mW/900mW/1000mW Red Laser Diode Pumped Solid State laser
LASER TREE 671nm 500mW/600mW/800mW/900mW/1000mW Red Laser Diode Pumped Solid State laser
LASER TREE

LASER TREE 671nm 500mW/600mW/800mW/900mW/1000mW Red Laser Diode Pumped Solid State laser

セール価格$1,409.00
Wavelength: 671nm
Power: 500mW
Power Supply: OEM Power Supply

Laser Specifications

LT-LM-PUMP-671-500~1000M-H.pdf

Features

  • Product Name: LT-LM-PUMP-671-500~1000M-H
  • Output Wavelength: 671±1nm
  • Output Power: 500mW, 600mW, 800mW, 900mW, 1000mW
  • Spatial mode: Near TEM00
  • Operating mode: CW or Modulation
  • Modulation: CW, Analog & TTL modulation 0~30 kHz
  • Beam Diameter(1/e²): <3 mm
  • Beam Divergence (Full angle): <1.5 mrad
  • Power Stability:  <±5% per 2 hrs
  • Warm Up Time: <5 minutes
  • MTTF(mean time to failure): 10000 hrs

Applications

  • Lidar
  • Thermal printing
  • Material Inspection
  • Scanning Biochemistry
  • Laser Alignment
