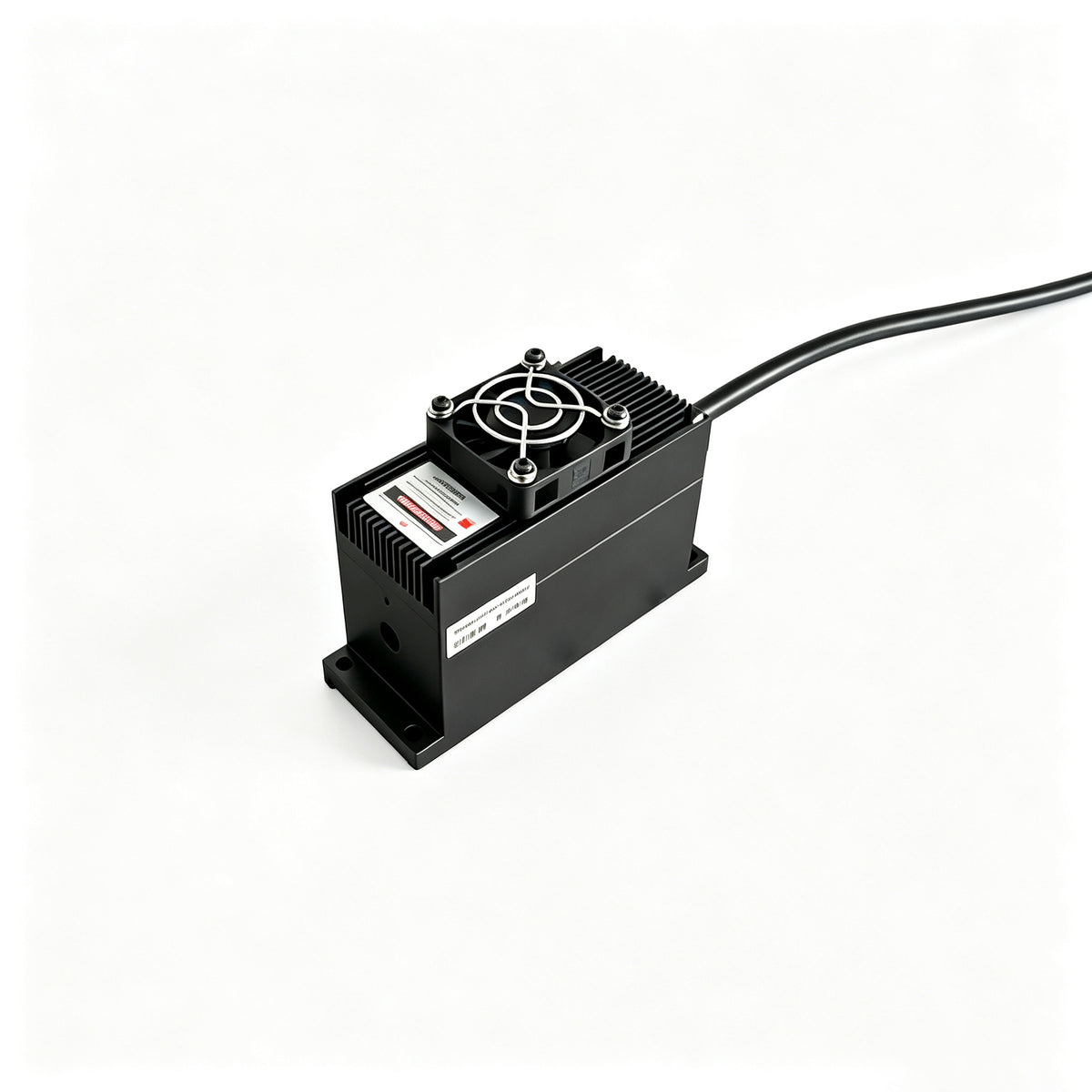

LASER TREE 980nm 100mW/1000mW IR Semiconductor Laser

Laser Specifications

LT-LM-980-100~1000M-SD.pdf

Features

• Product Name: LT-LM-980-100~1000M-SD
• Output Wavelength: 980±5nm
• Output Power: 100mW, 1000mW
• Spatial mode: TEM00
• Operating mode: CW or Modulation
• Modulation: CW, Analog & TTL modulation 0~30 kHz

• Beam Diameter(1/e²): 1.0 mm
• Beam Divergence (Full angle): 1.25~1.5mrad
• Power Stability:  <3%
• Warm Up Time: <1 minutes
• MTTF(mean time to failure): 10000 hrs

Applications

• Lidar
• Thermal printing
• Material Inspection
• Scanning Biochemistry
• Laser Alignment
