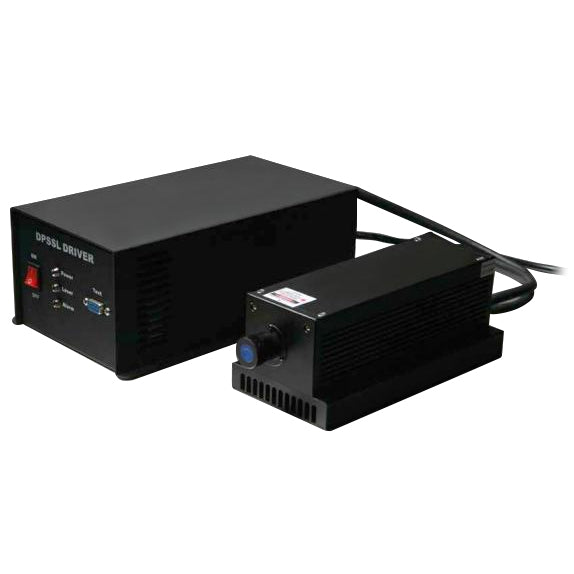

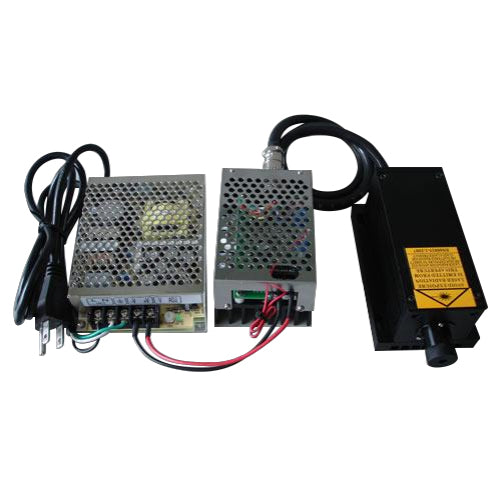

LASER TREE 320nm UV 10mW/20mW/100mW DPSS Laser Module

Laser Specifications

LT-LM-PUMP-320-10~100M-F.pdf

Features

• Product Name: LT-LM-PUMP-320-10~100M-F
• Output Wavelength: 320±1nm
• Output Power: 10mW, 20mW, 100mW
• Spatial mode: TEM00
• Operating mode: CW or Modulation
• Modulation: CW, Analog & TTL modulation 0~30 kHz
• Beam Diameter (1/e²): 1.2 mm
• Beam Divergence (Full angle): 1.0 mrad
• Power Stability:  <5% per 4 hrs
• Warm Up Time: <5 minutes
• MTTF(mean time to failure): 10000 hrs

Applications

• Lidar
• Thermal printing
• Material Inspection
• Scanning Biochemistry
• Laser Alignment
