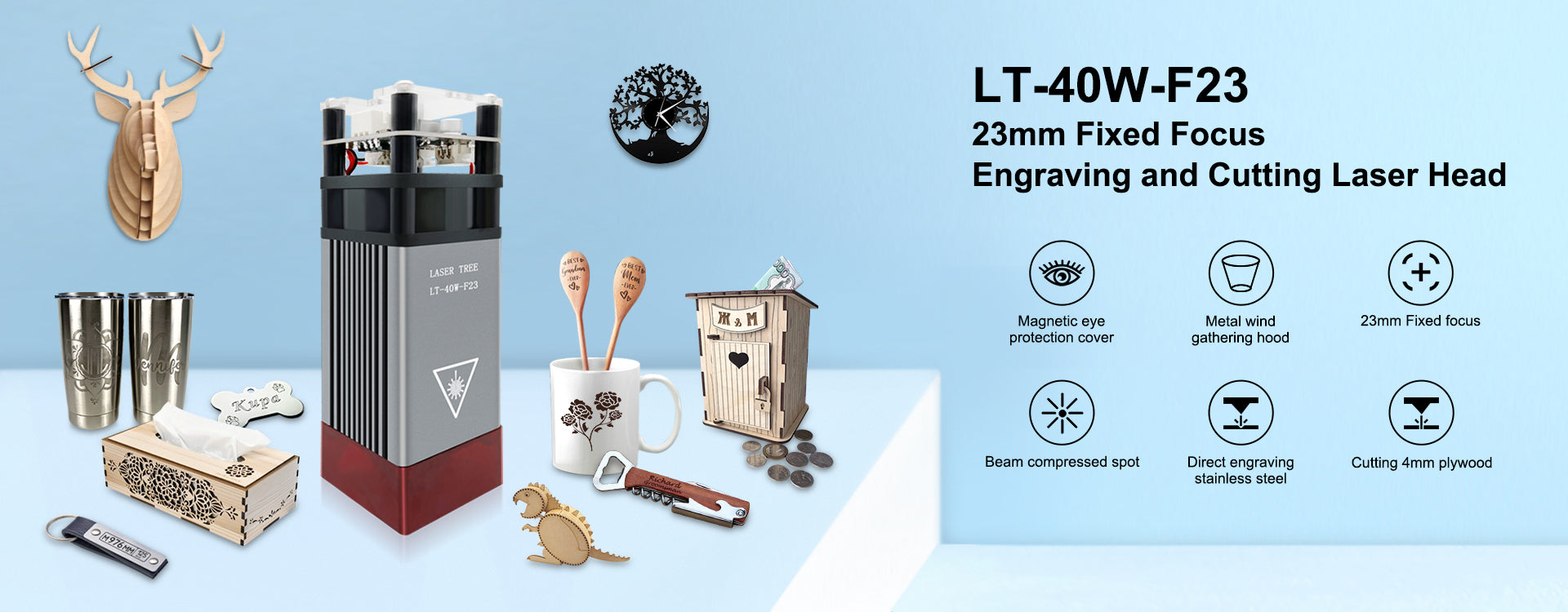

 LT-40W-F23 is a high performance fixed focus laser module for beginners.

1. Wonderful engraving resolution:

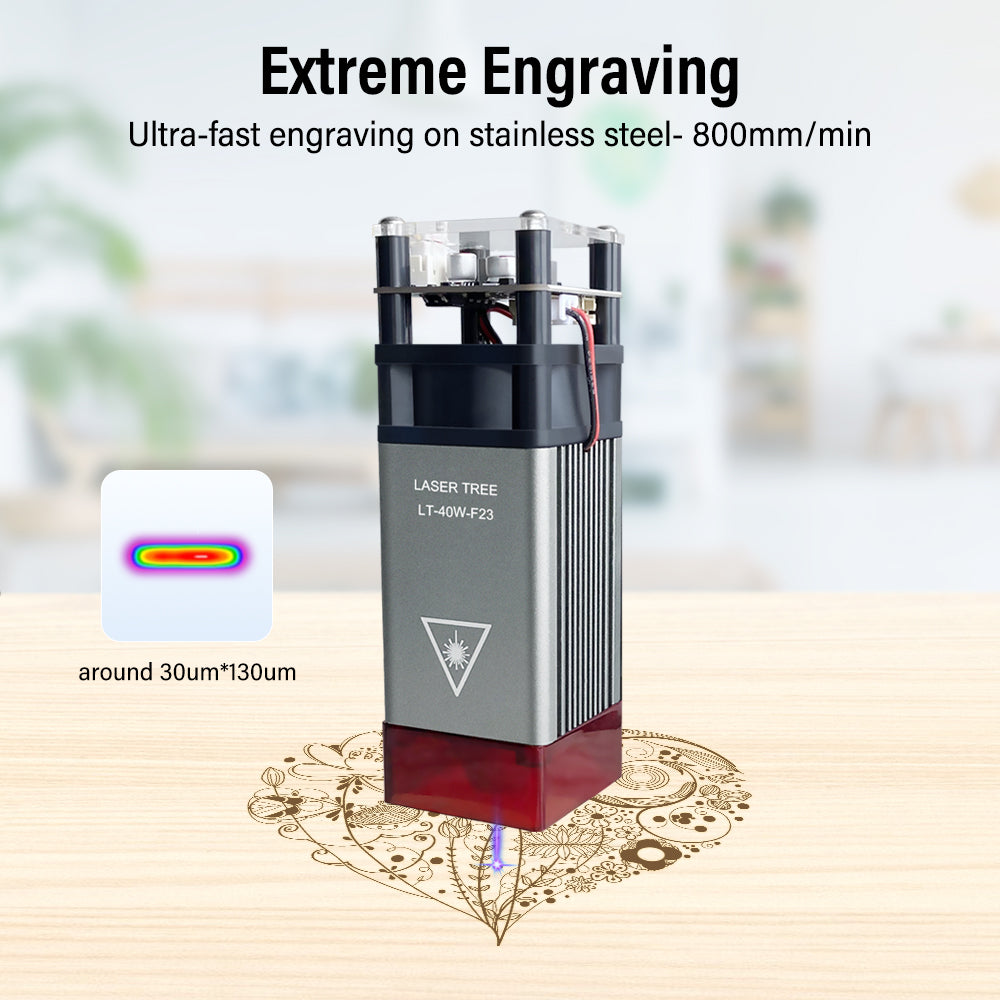

Built-in beam compressed optic technology, make the beam size at foucs to be around 30um*130um.
Due to 30um bean width at X direction, it makes the engraving precision reach to 0.03mm, that's make
high resolution engraving photos possible.

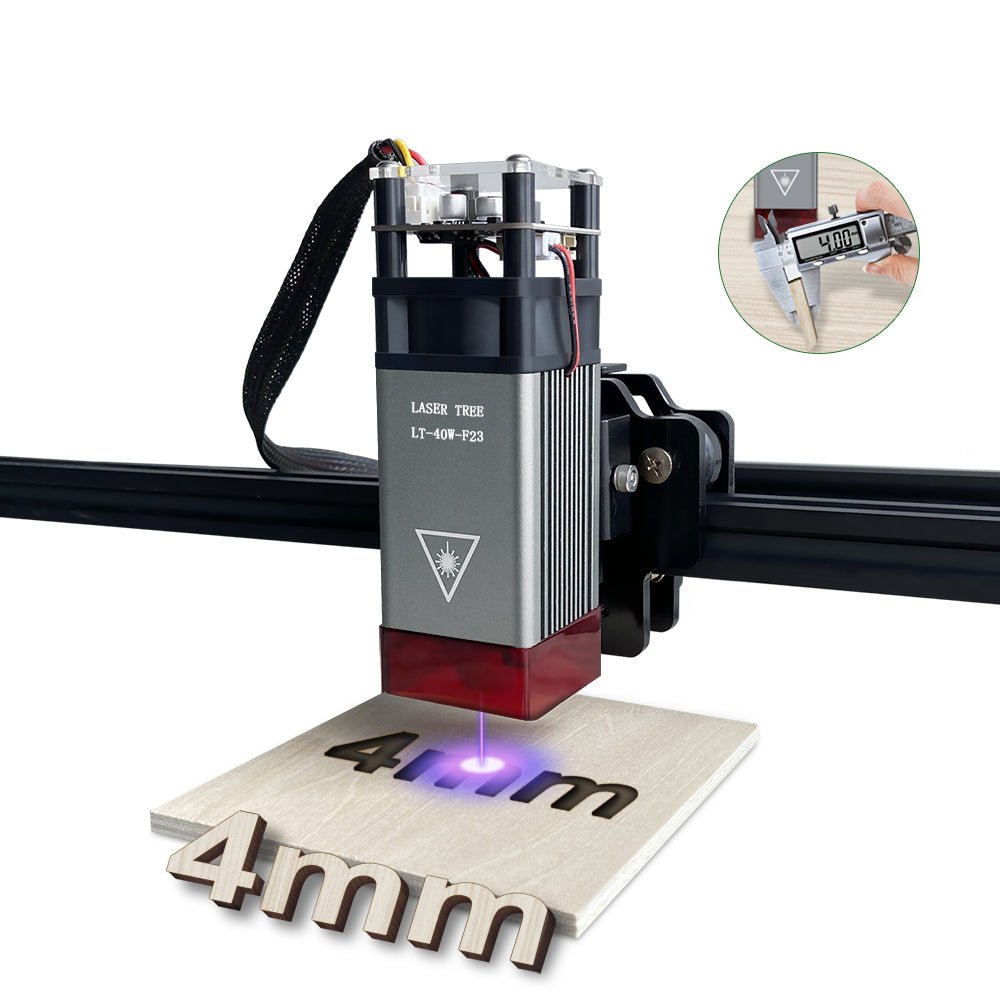

2. Excellent cutting ability:

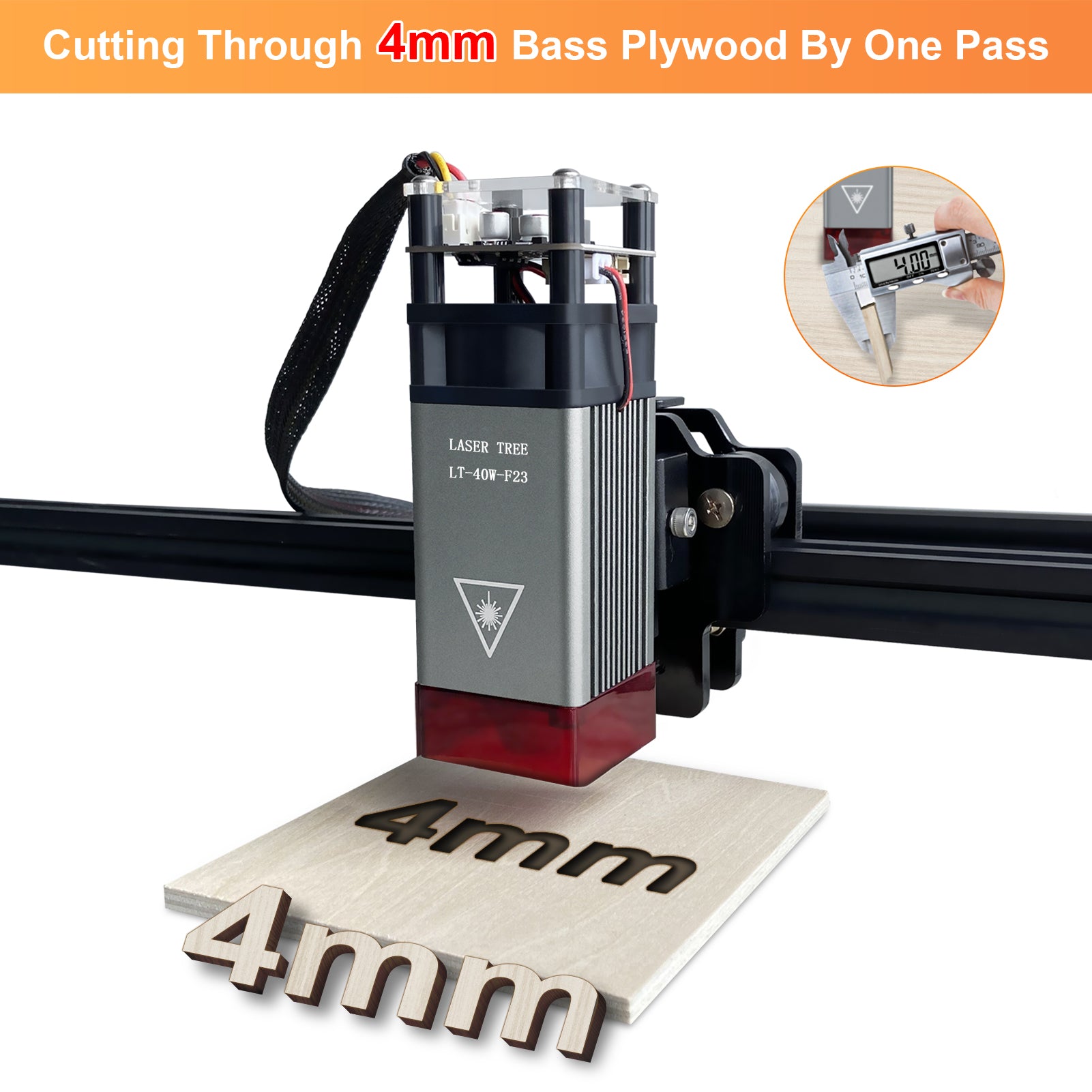

Cutting through 4mm plywood by one pass at speed of 100mm/min.

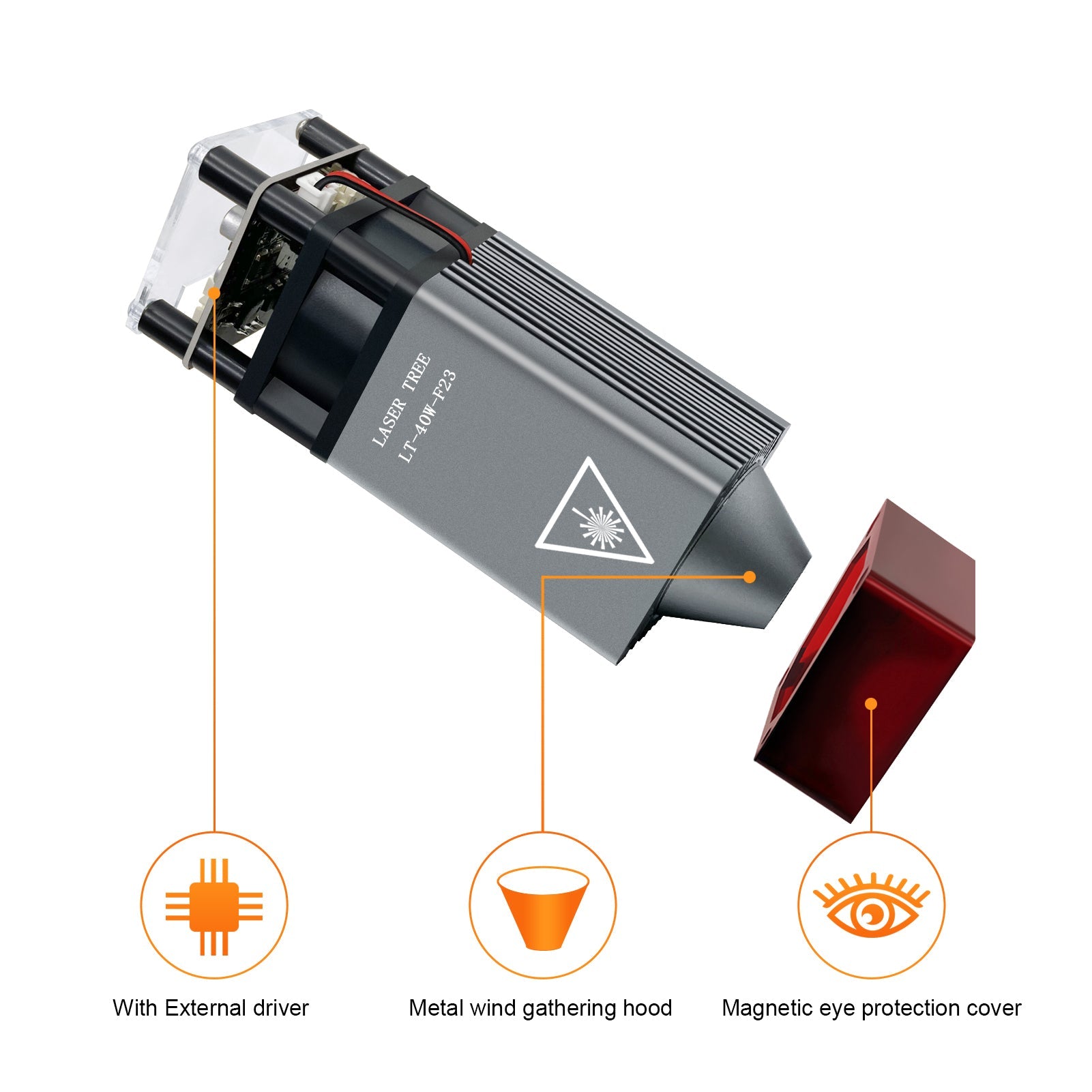

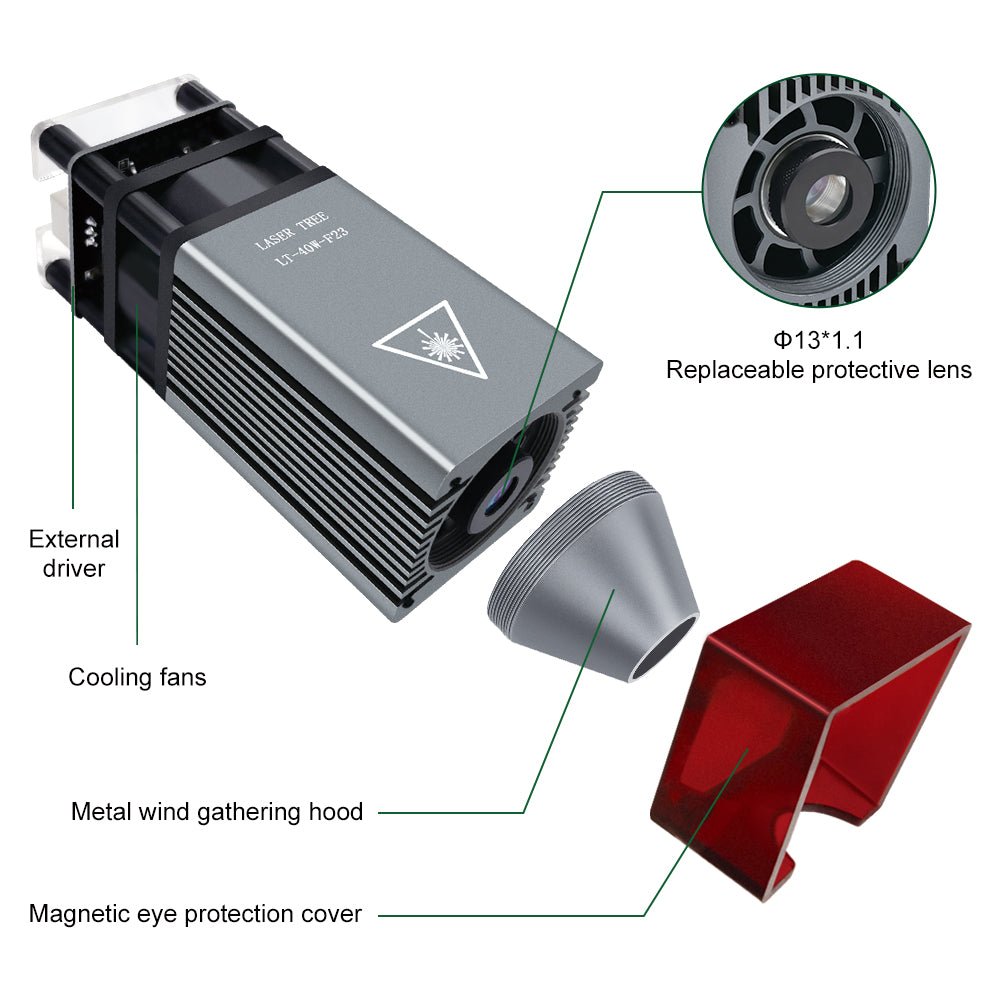

3. Long life time design:
Tradional design on lens makes the lens easy to broken when the lens is contaiminated by smoking during enrgaving and cutting, this situation lead to the performance of the laser module decrease sharply.This laser head has protective lens design, a protective window glass with high temperatue resistane material can protect the foucs lens away from smoking, user expreicen be can highly improved.

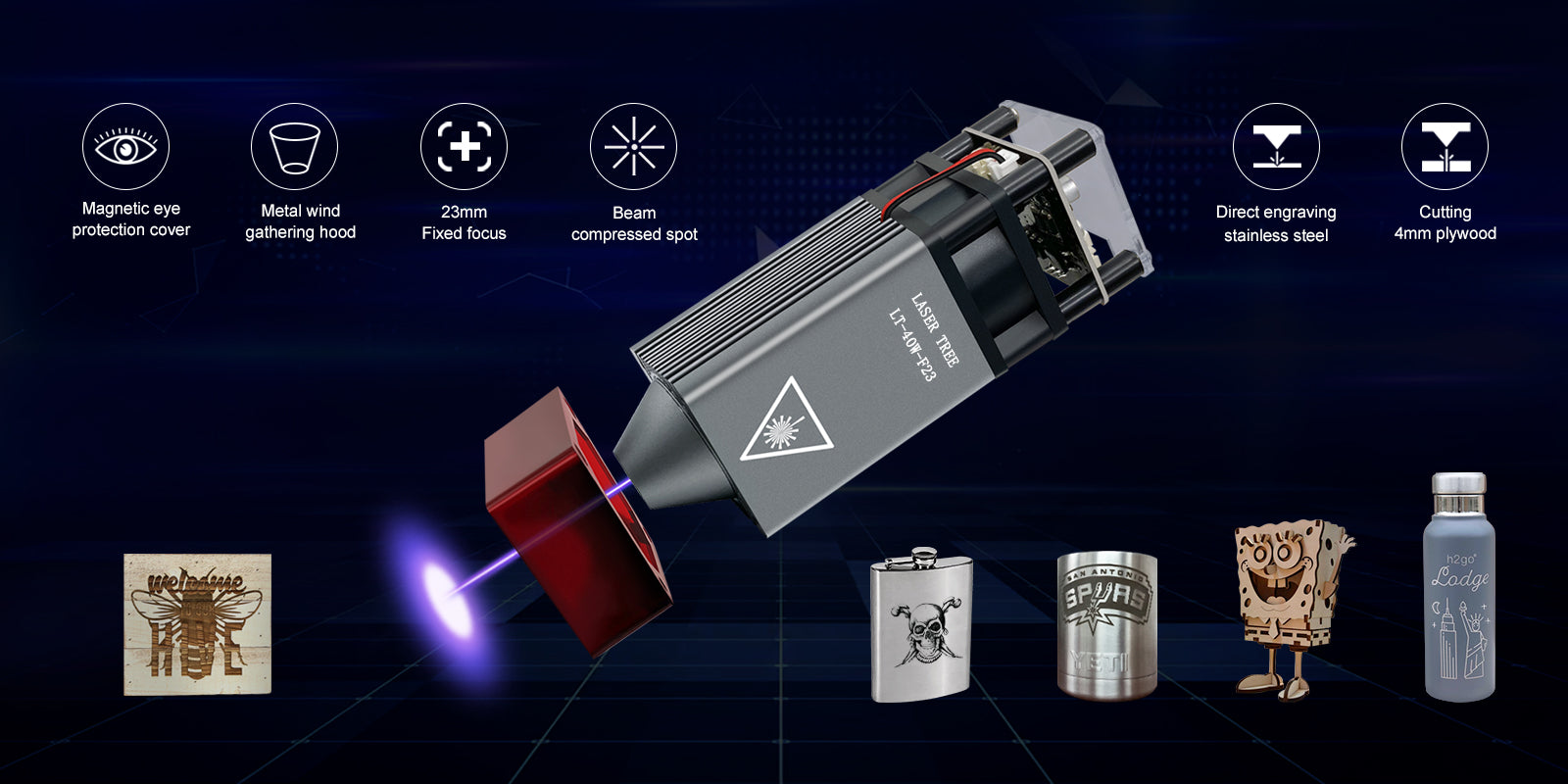

4. Widely enraving and cutting material:
Engraving materials:
Cardboard, plastic, leather, MDF, rubber, stainless steel,aluminum with oxide layer etc.
Cutting materials:
wood, black acrylic, acrylic, cardboard, non-woven, bamboo, laser safe plastic, etc.

5.Widely compatibility:
Compatible with most of laser cutting machines, such as Atomasktack A5/A5pro, Ortur laser master/ laser
master 2, etc.

---

SPECIFICATION

Module: LT-40W-F23
Laser color: blue
Output optical power: 5W
Wavelength: 450nm

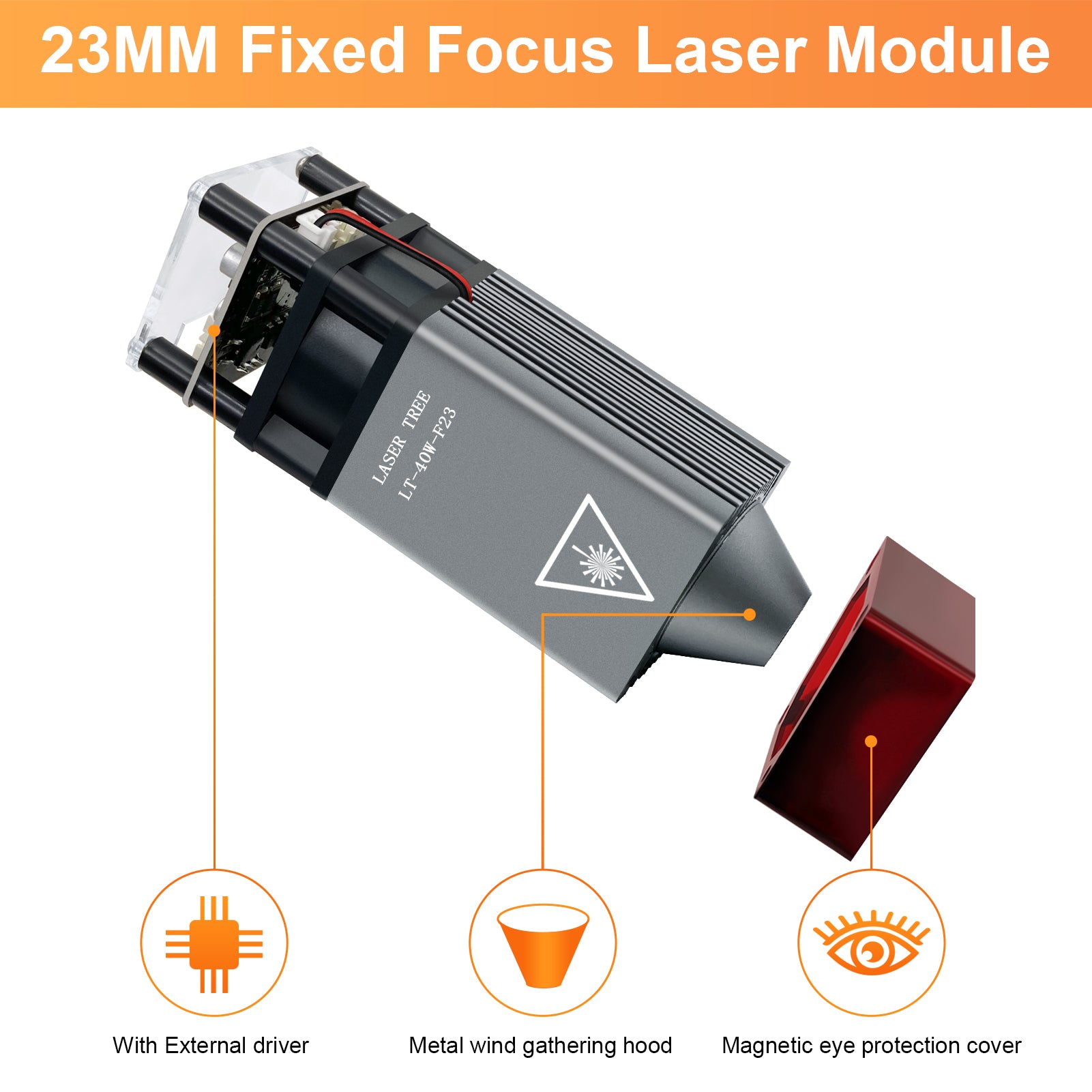

Focus method: fixed 23mm
Electrice power: 12V1.8A(1.5A-2A)
Weight: 240g

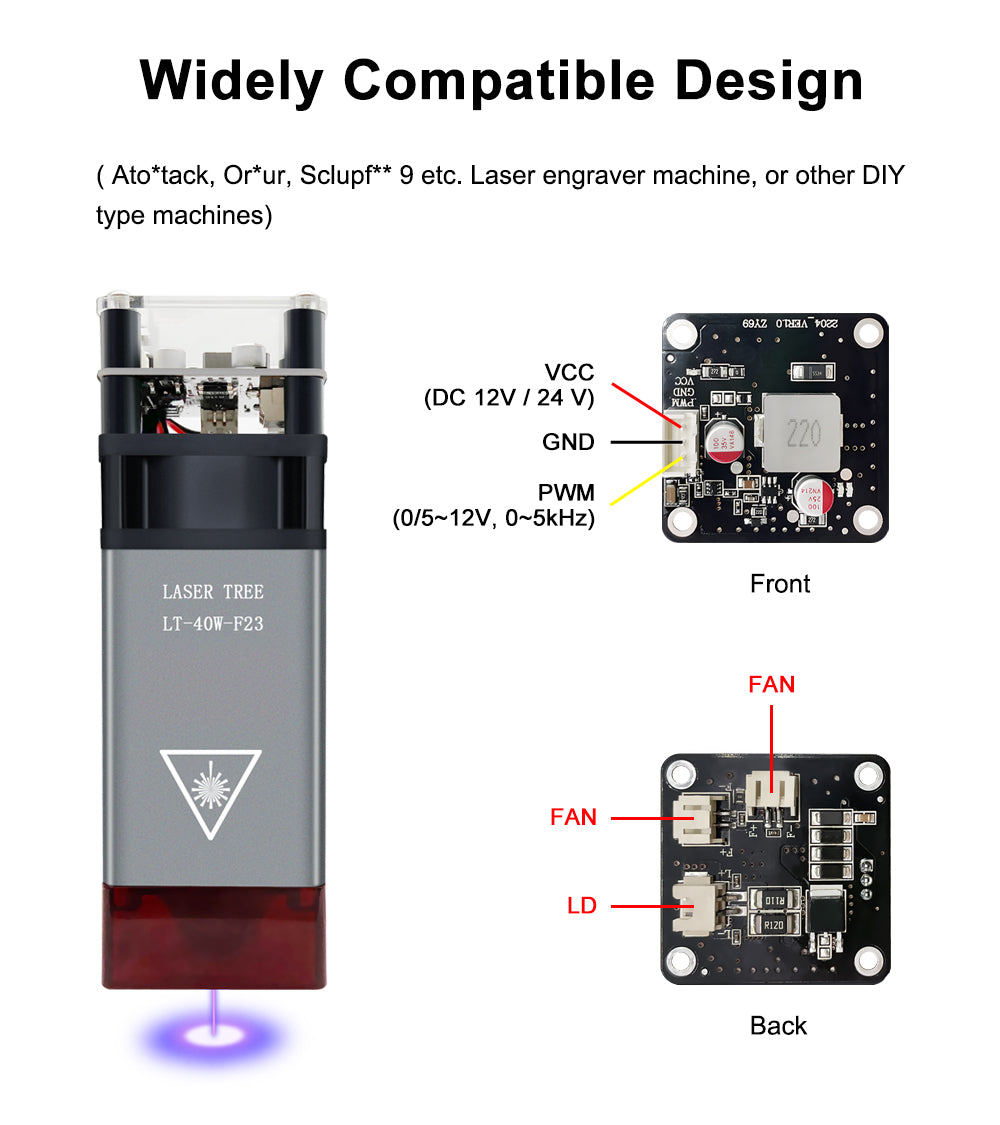

Interface: XH2.54-3P socket
Adjustable powe : Support 5V PWM modulation
Drive protection: Surge protection 、overvoltage protection
Fan Size: 40x40x20 mm
Heat Sink Size: 40x40x103mm
Fan feed:9000pm
Temperature control: 0-60℃
Protective window lens: Yes ( withstand 1000℃ )
Application: cutting, engraving

---

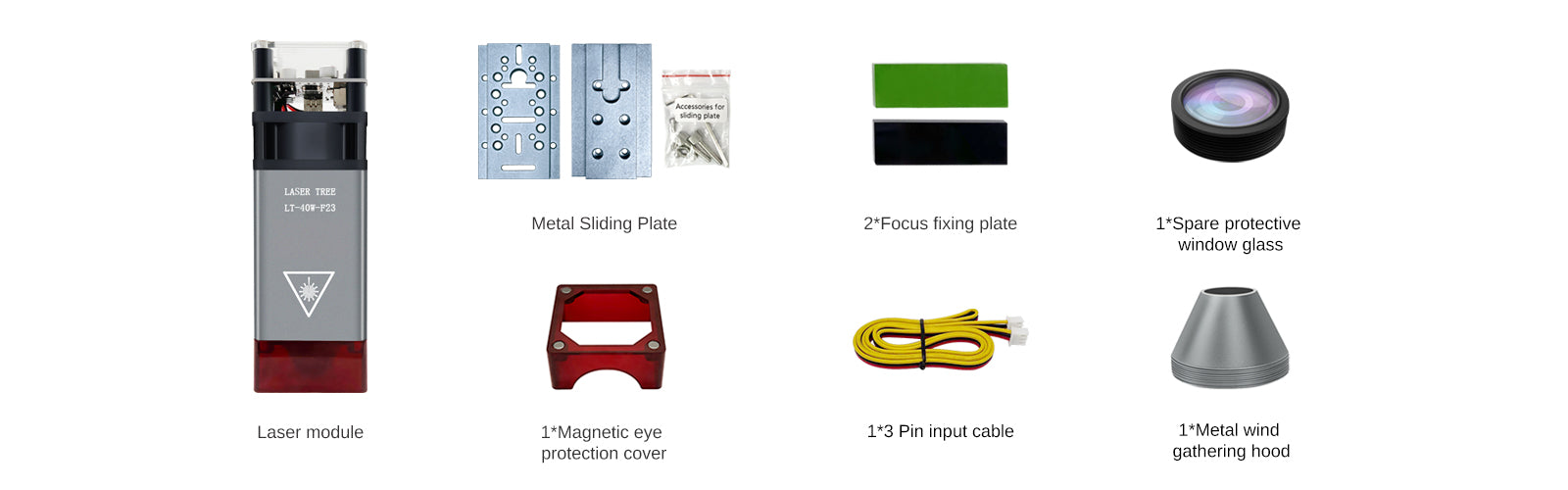

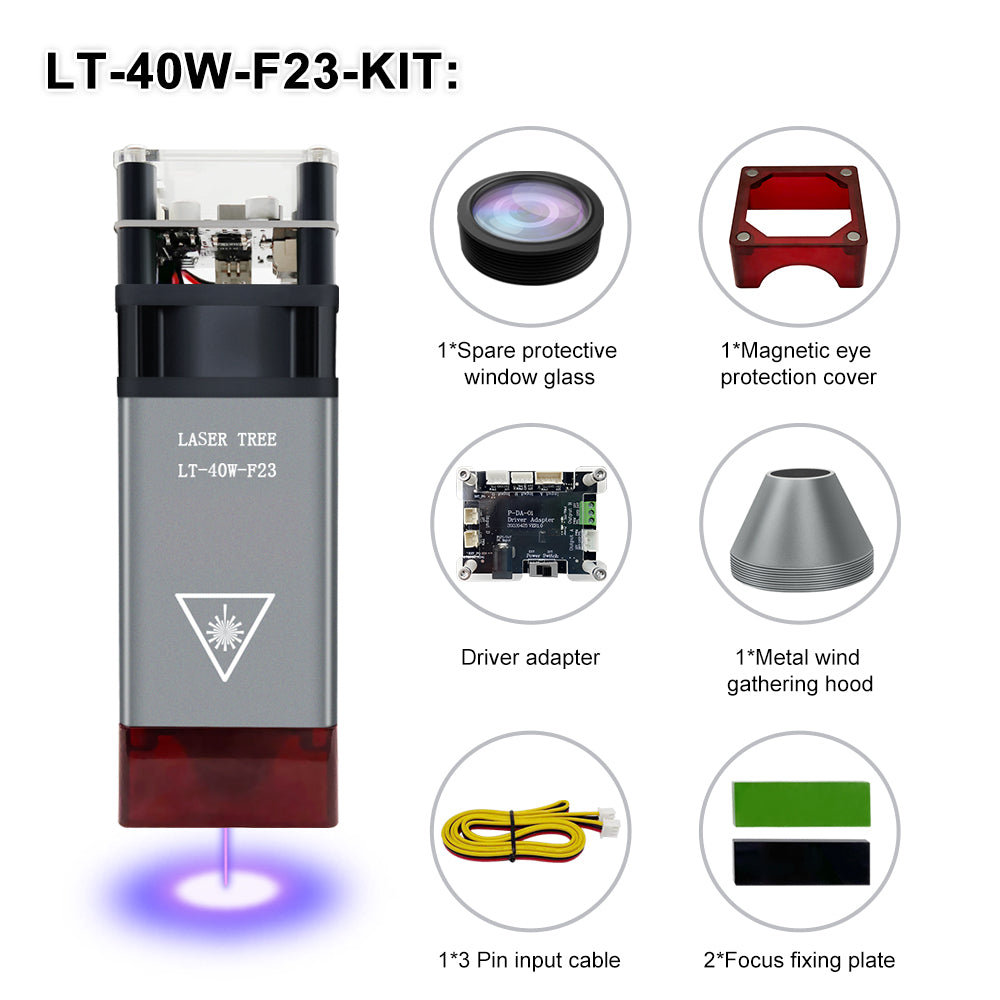

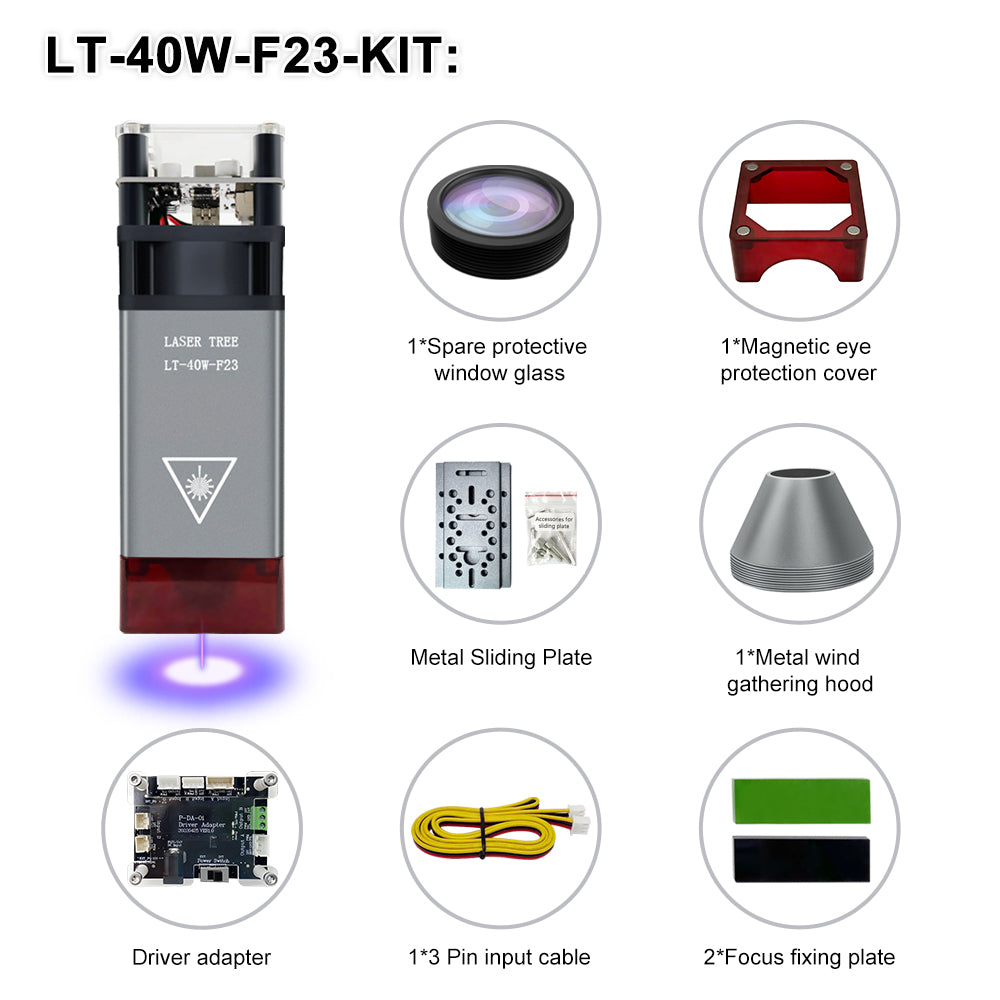

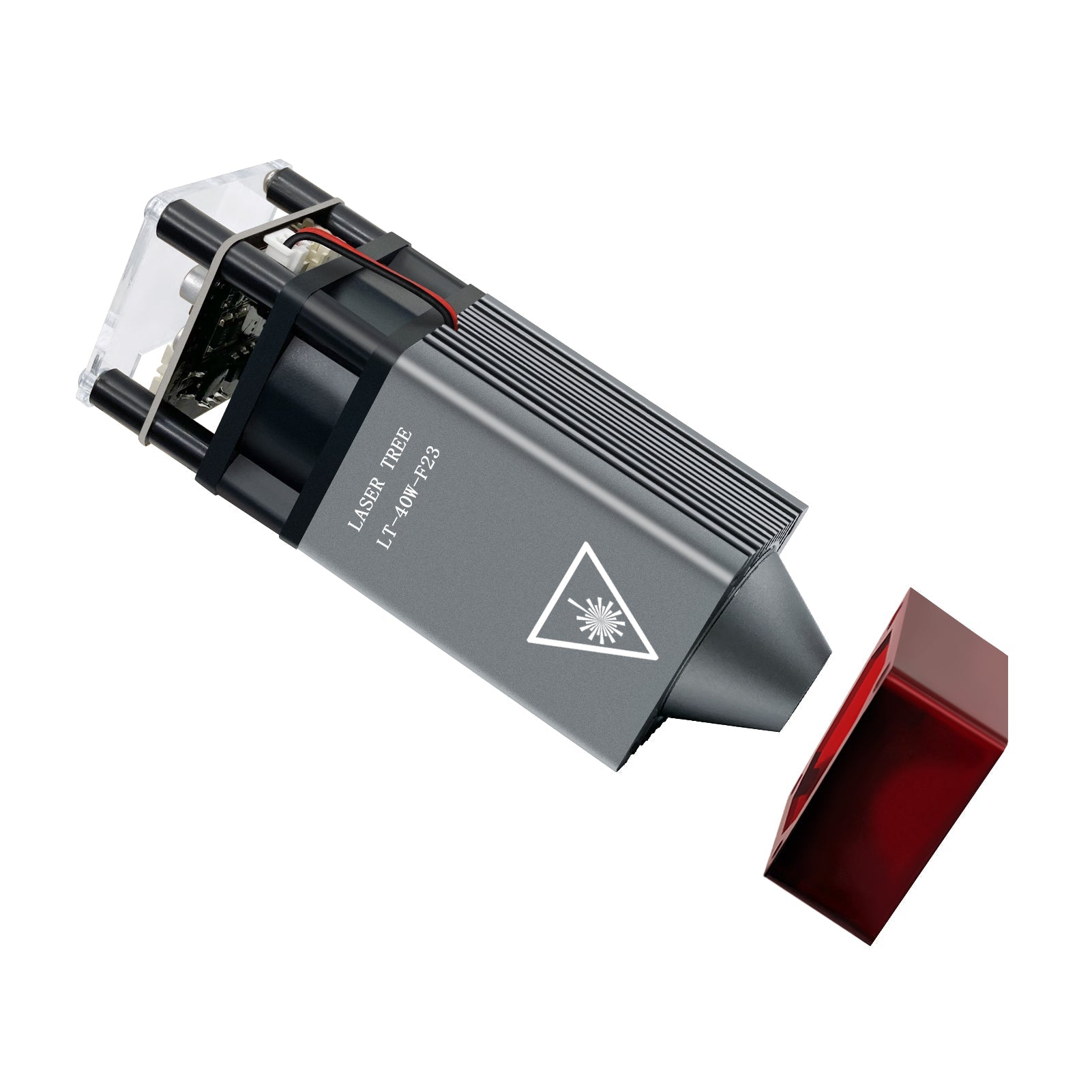

Packing list:

• 1 * laser head
• 1 * eye protection cover

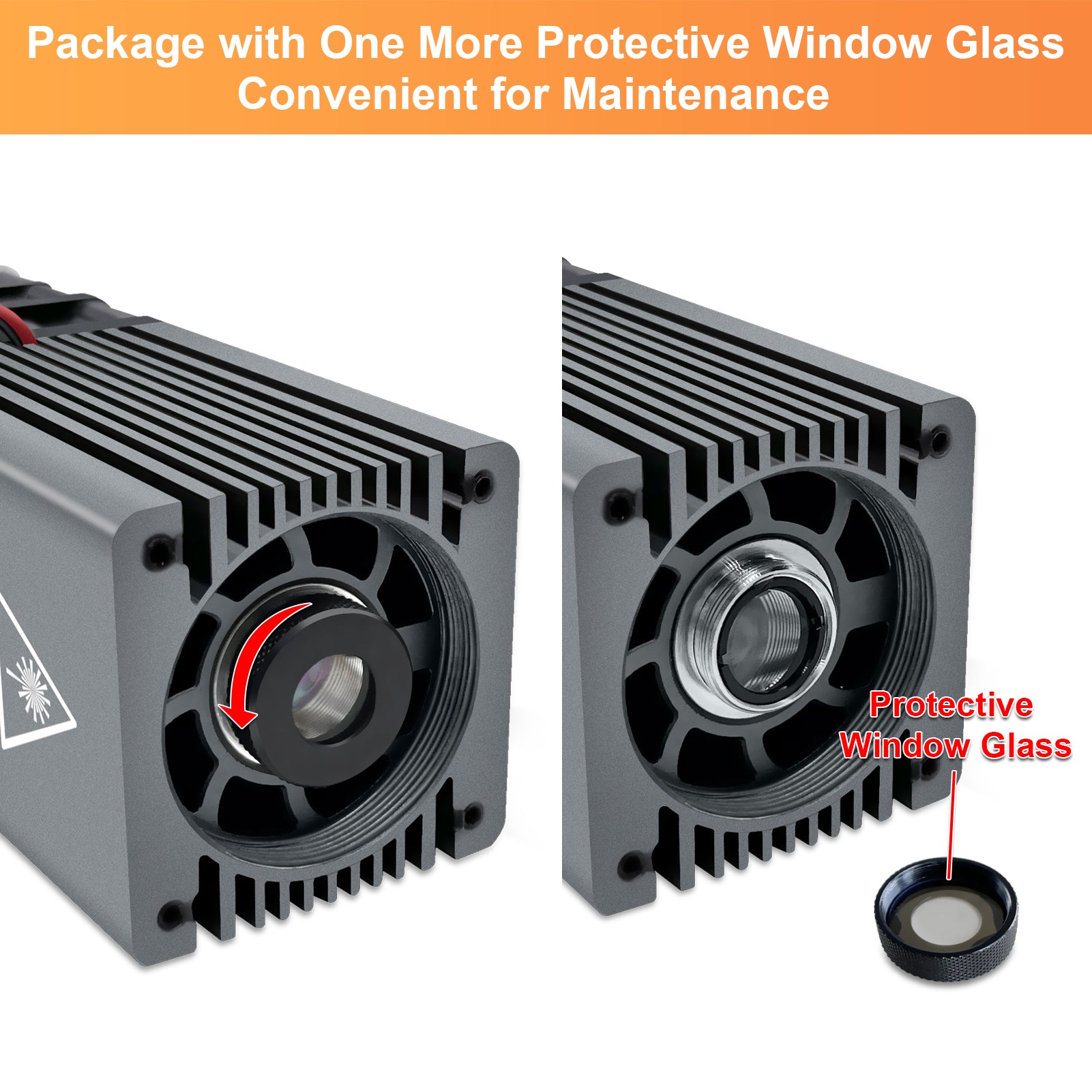

• 1 * Protective Window Glass
• 1 * 3pin cable

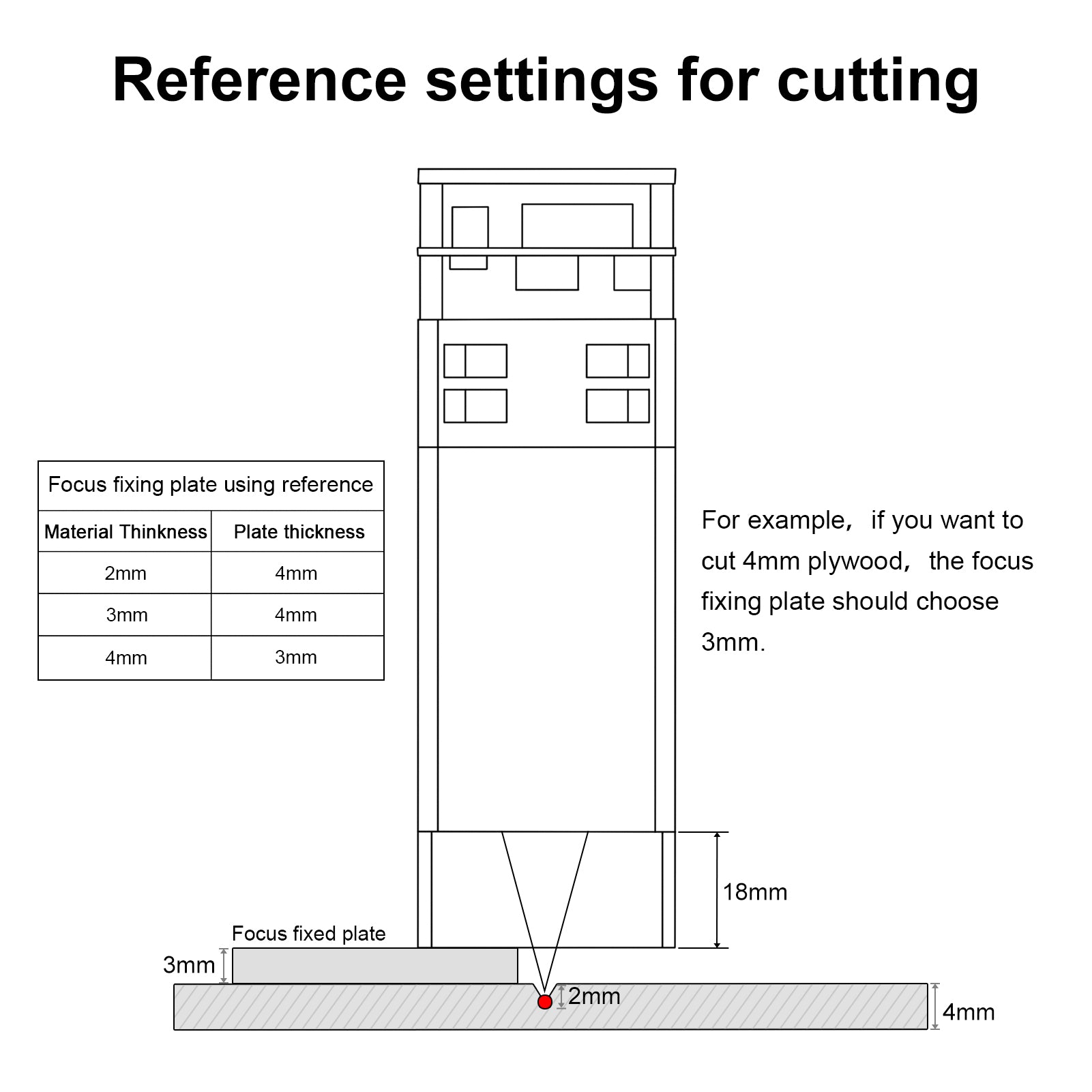

• 2 * Focus Fixing Plate

---

Improved Power & Accuracy
