10W Laser Module for 3018 CNC,with Air Assist

Sale price$179.00 Regular price$259.00
5.0

POWERFUL POWER: 10W optical power with 0.08mm sharp compression focus and 0.1mm engraving accuracy. Can cut 8mm plywood in one pass.

WITH AIR ASSISTANCE: Air nozzles increase engraving speed and quality and protect your optics from smoke and dust for better performance and laser life.

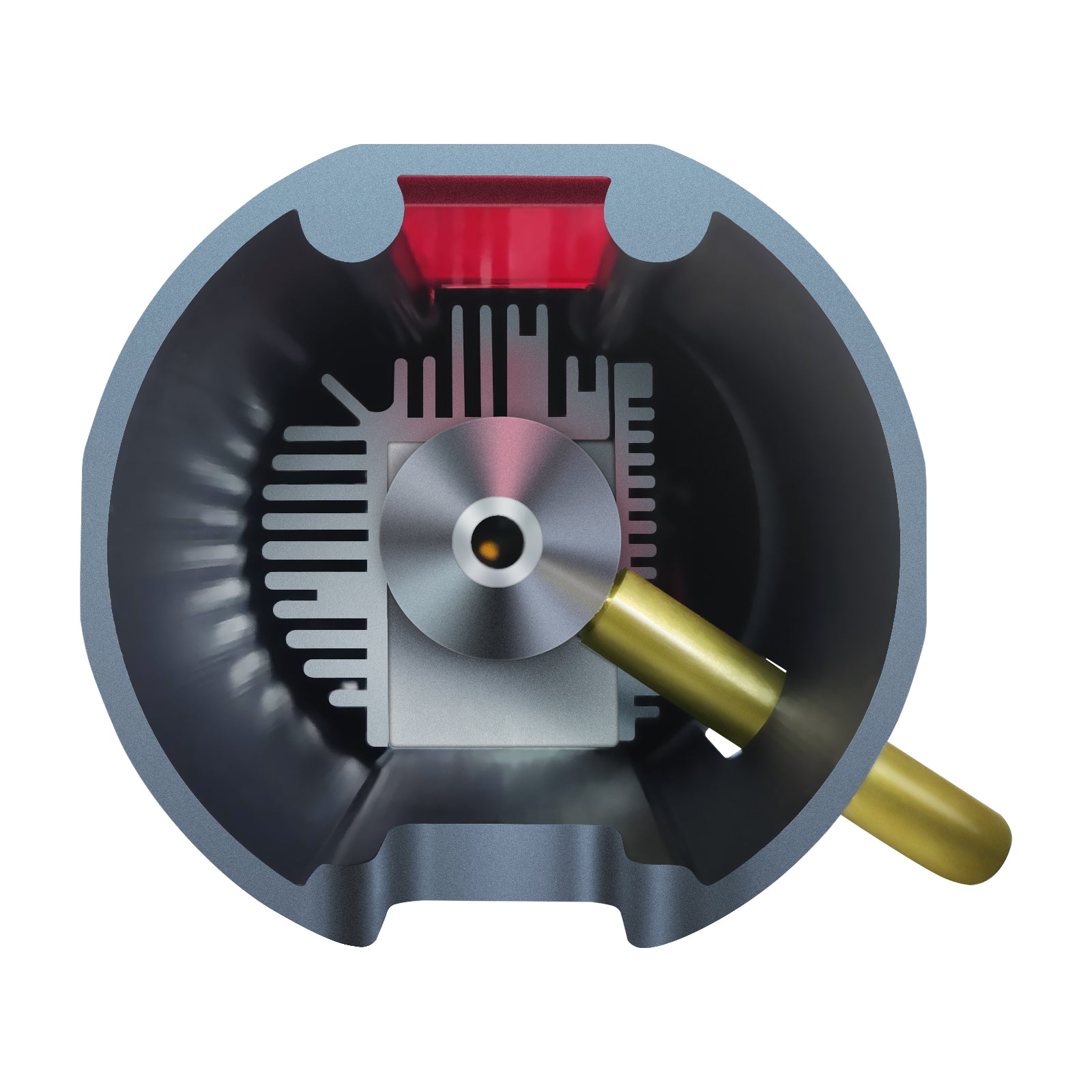

LONGER OPERATION LIFE: Equipped with high-quality aluminum heatsink and cooling fan, this can help the heat dissipate faster and ensure the module works continuously.

LASER SHIELD: The laser head comes with a laser shield to filter laser radiation and avoid accidental laser exposure for safer operation.

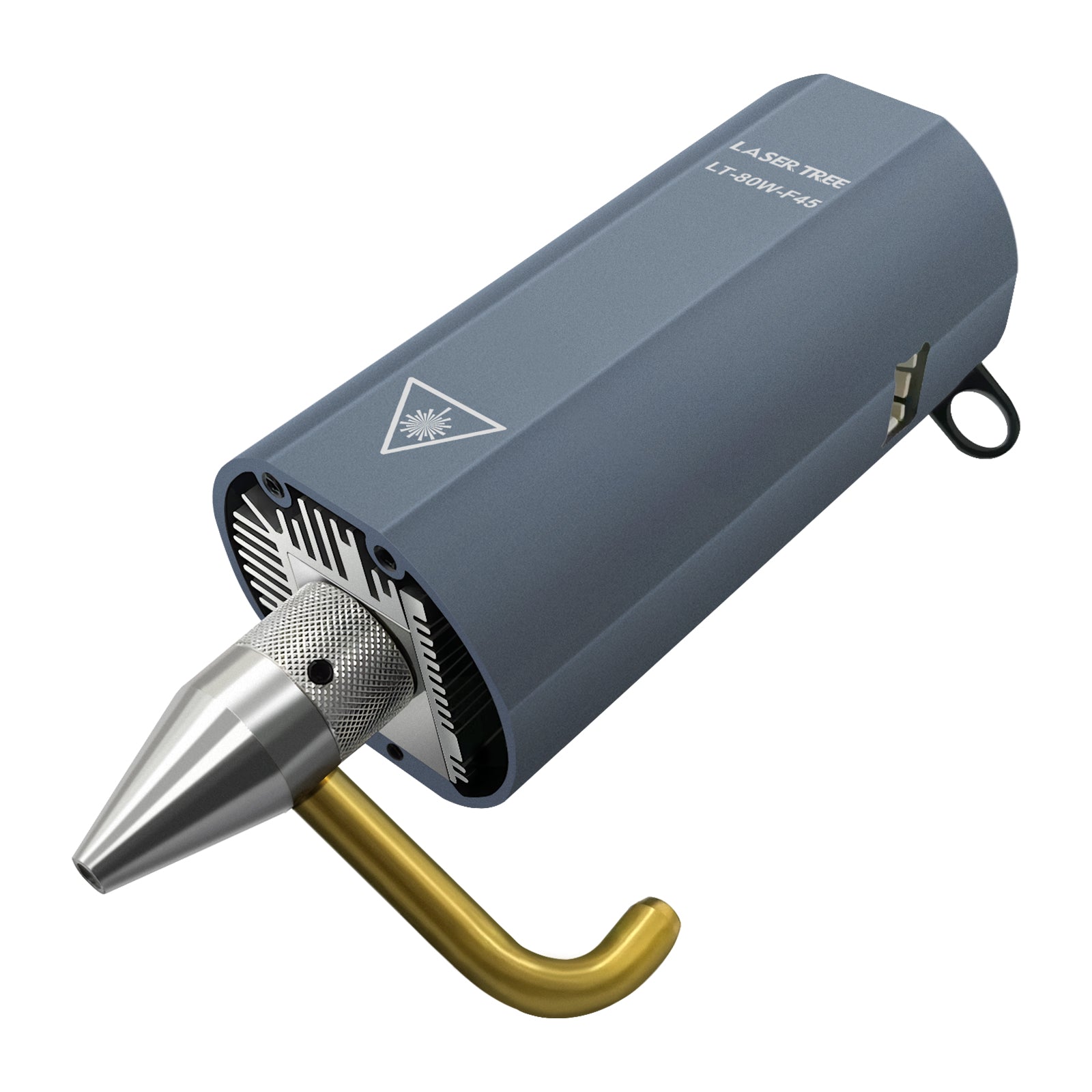

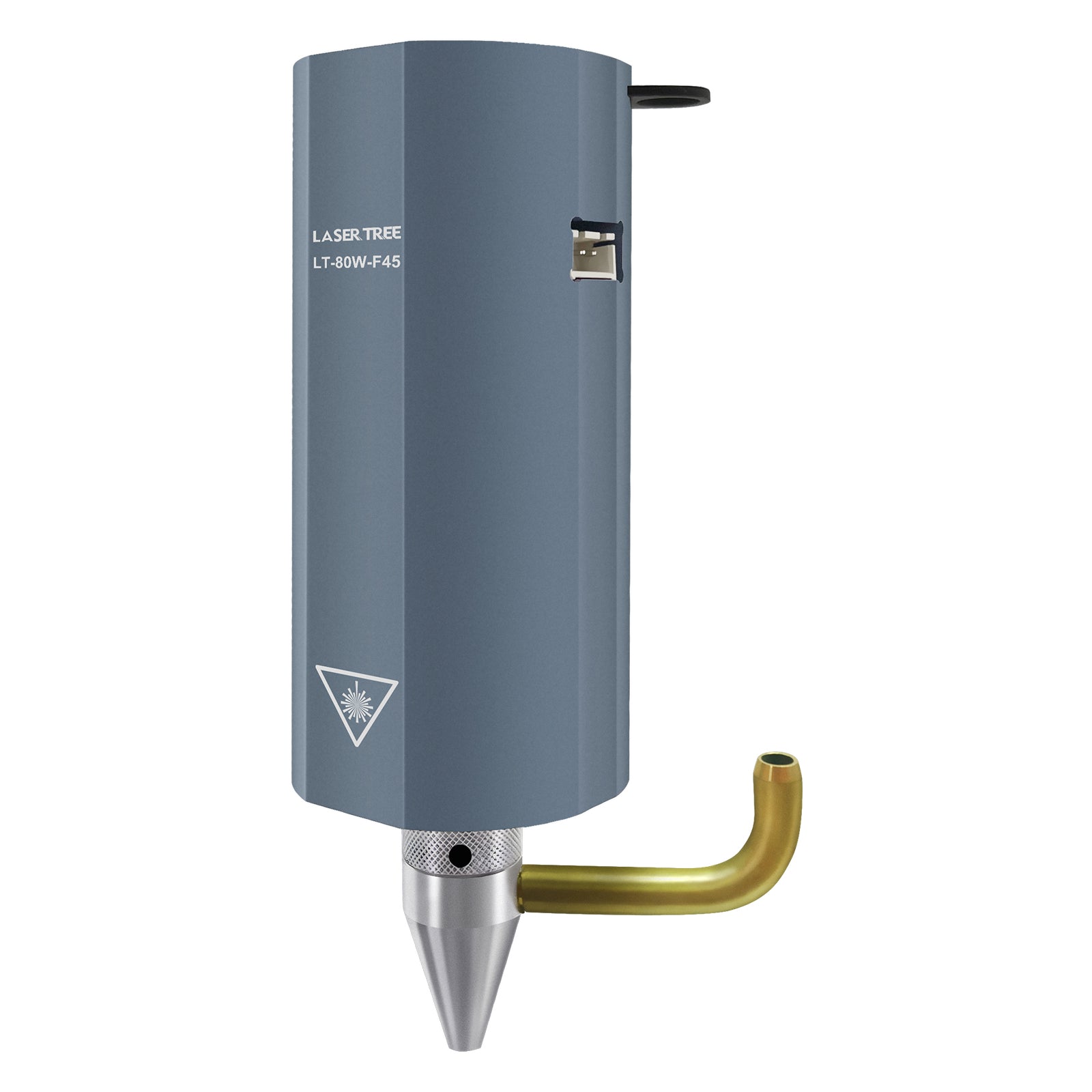

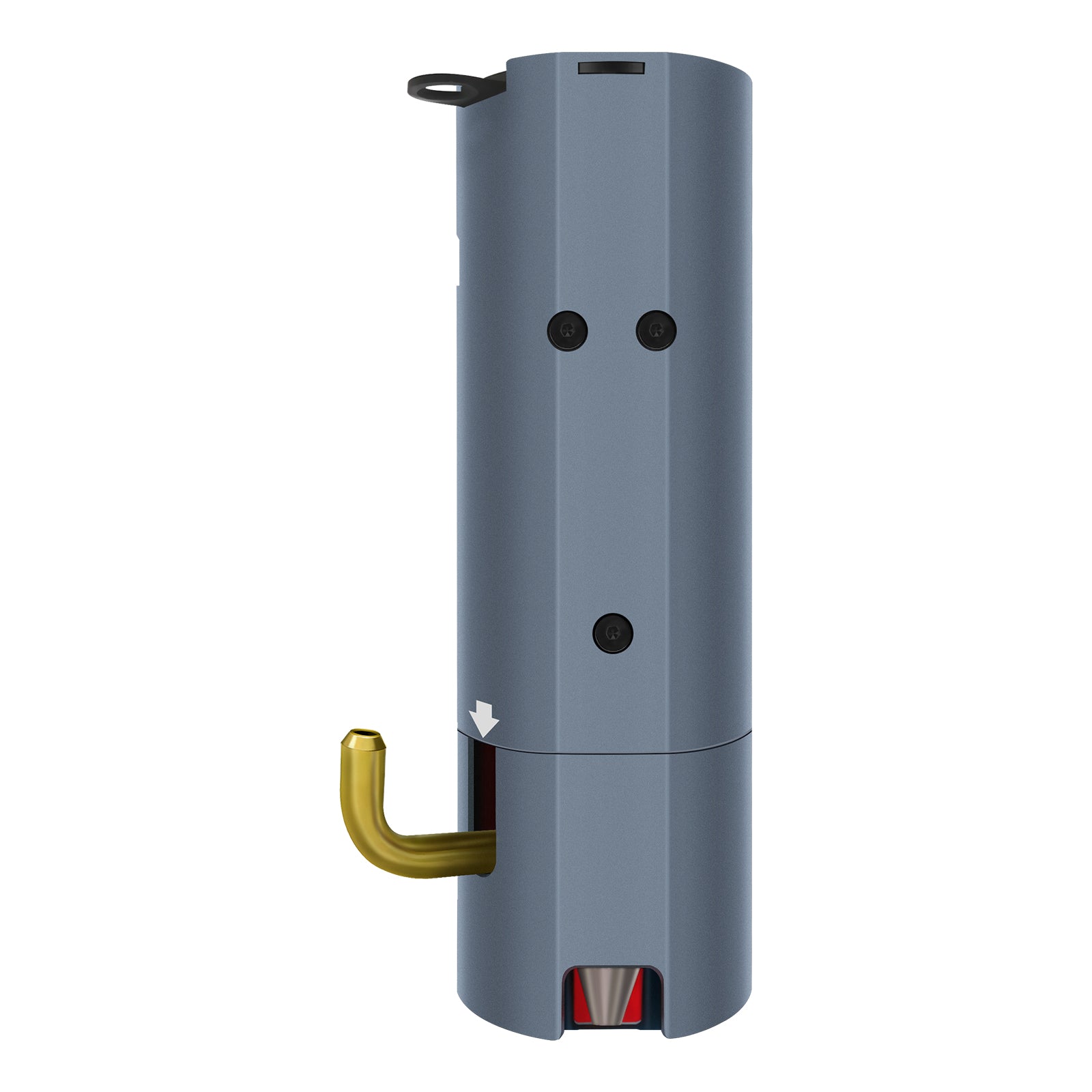

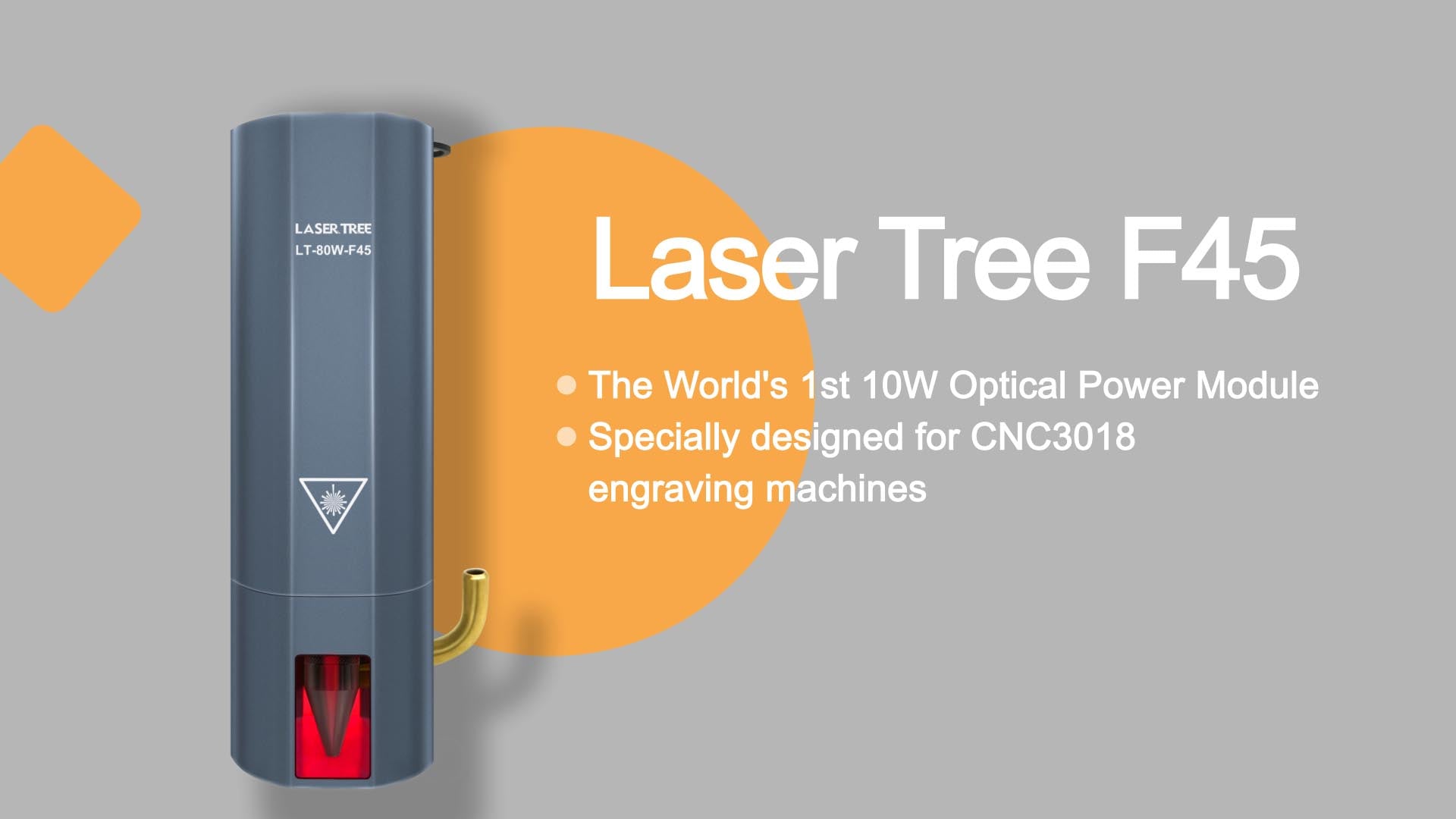

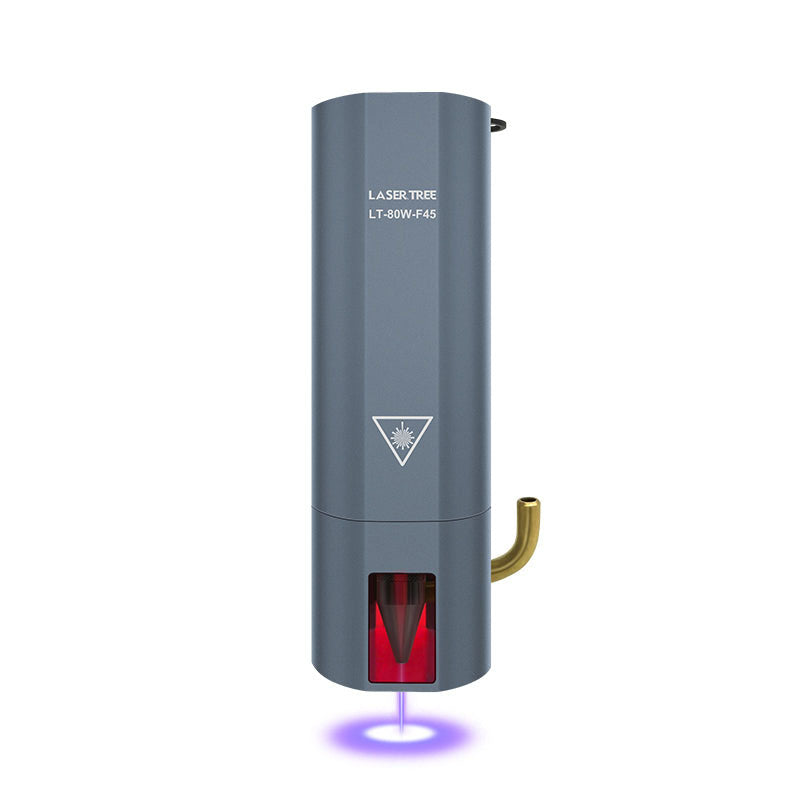

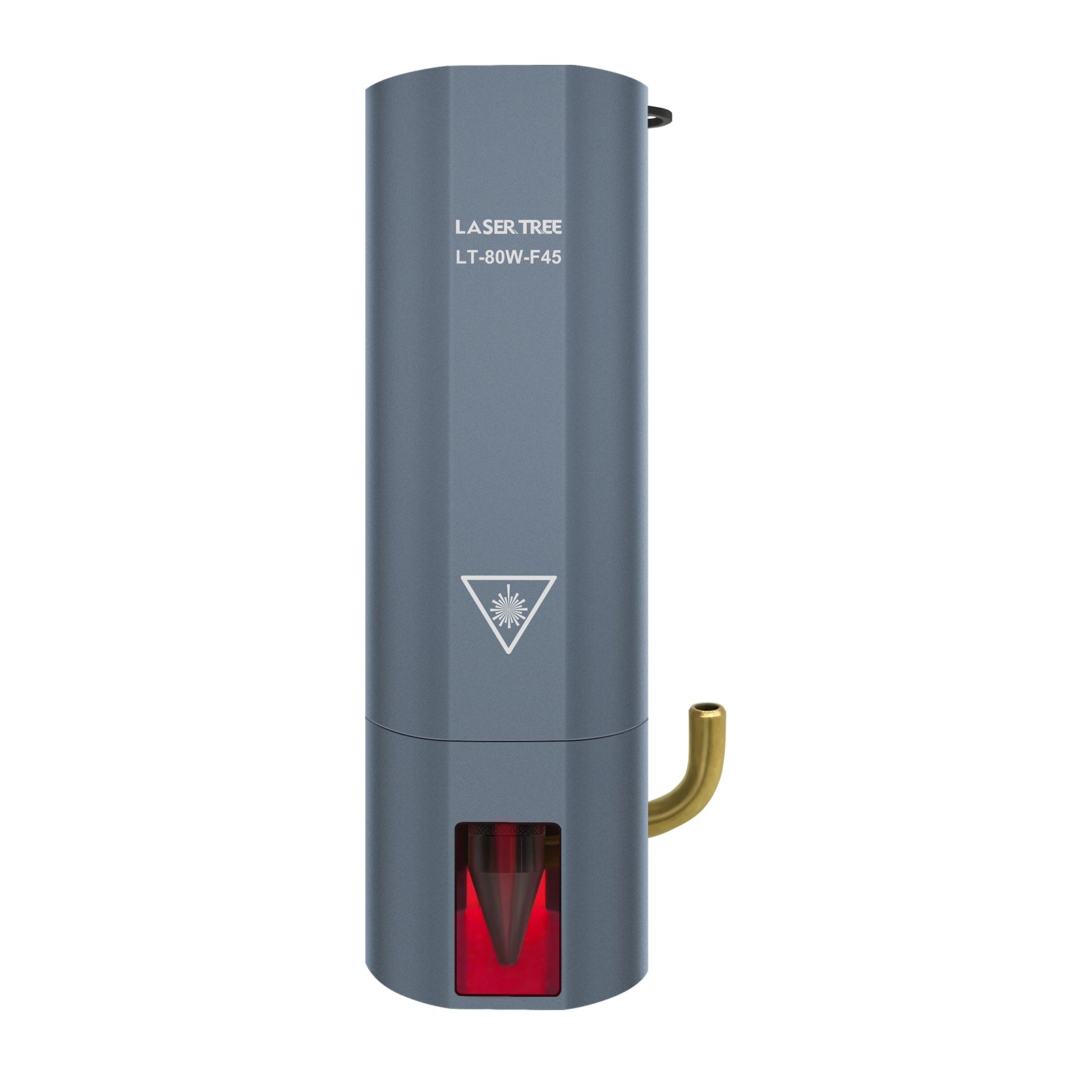

Professional 10W Laser Module for CNC 3018

If you are a CNC engraver looking for an upgrade, you can add the matching LT-80W-F45 laser module to your machine. With this module, it definitely offers you a different way to unleash your creativity!

Model

LT-80W-F45

Optical Power

10W(±1W)

Input

DC 12V 3A

Wavelength

450nm(±10nm)

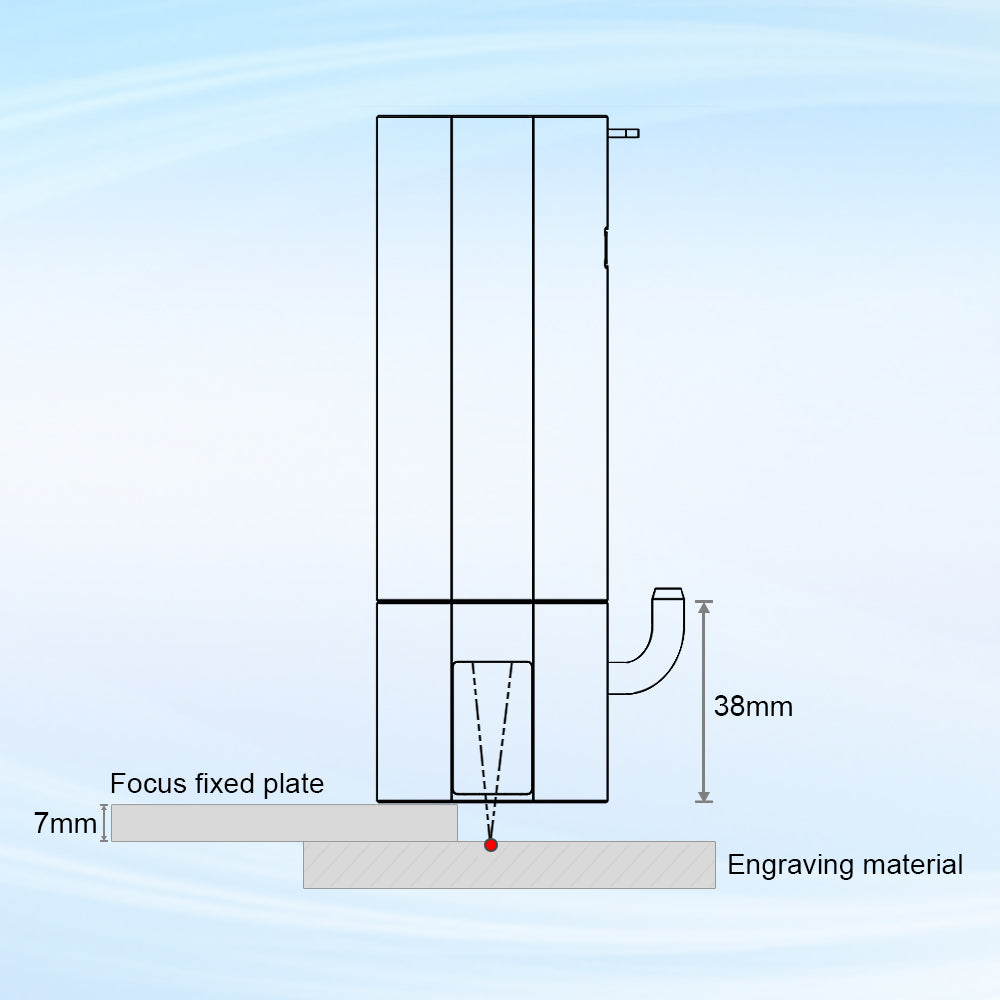

Focus Length

45mm

CNC3018

10W laser diode module for the CNC 3018

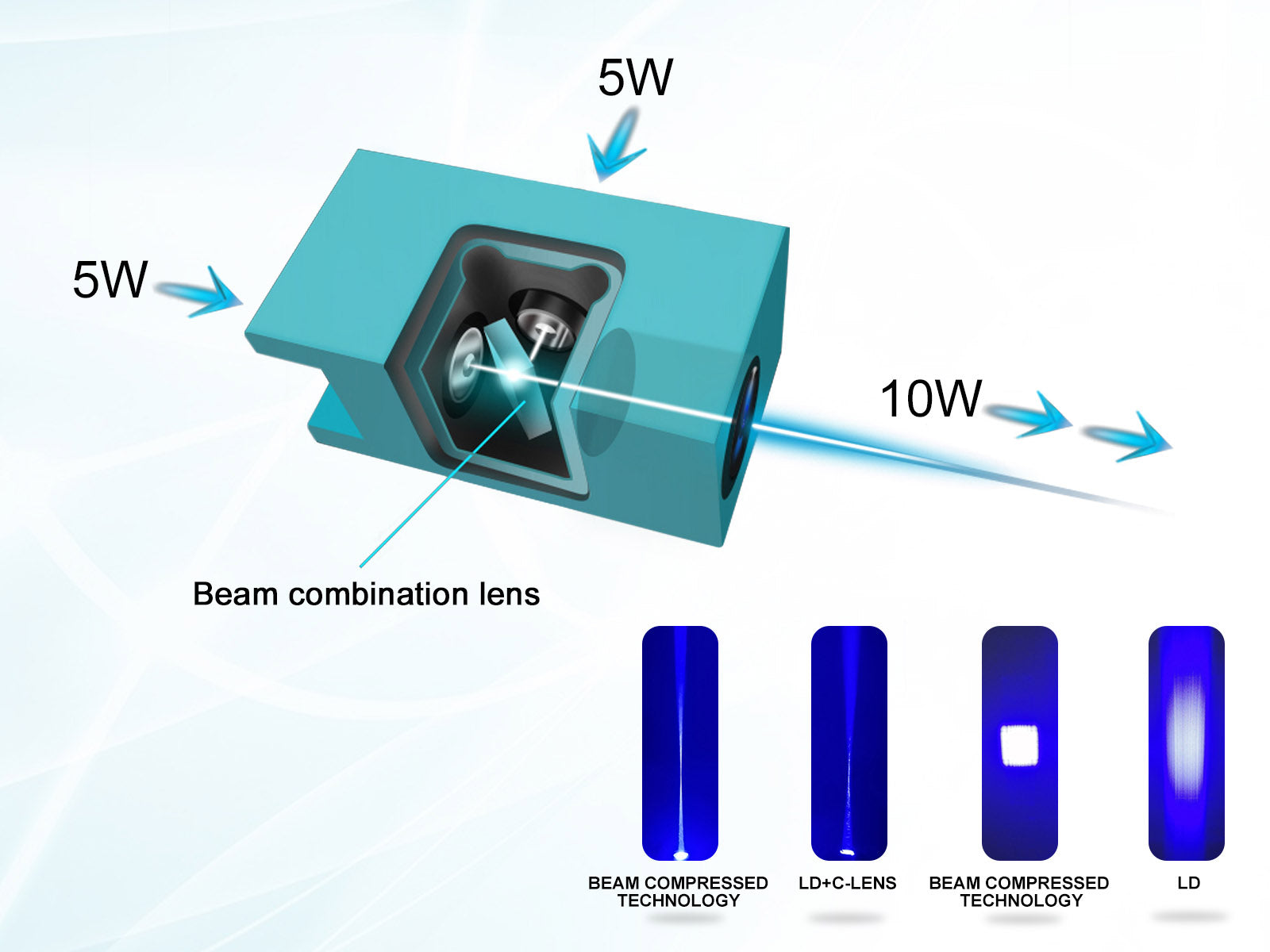

Dual-LDs With Beam Compressed Technology

One laser module has two built-in laser diodes.The optical power of each diode is 5W.

With beam combination technology, our laser module is double powerful and the beam quality is as good as a single diode.

01

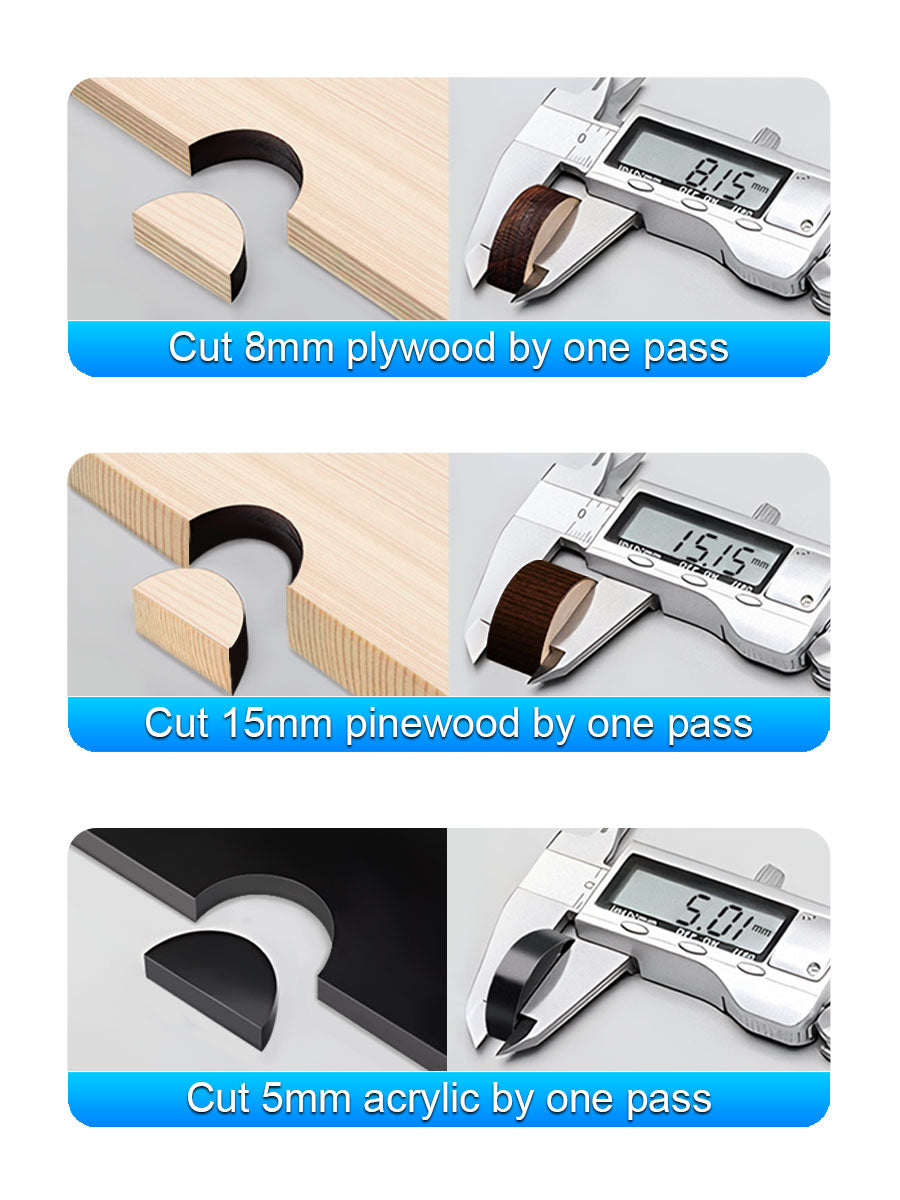

Powerful Cutting Ability

Cutting limit in one pass

  • Cut 8mm plywood: 120mm/min, 100% power
  • Cut 15mm pinewood: 50mm/min, 100% power
  • Cut 5mm black acrylic : 50mm/min, 100% power
02

Wide range of material options:

Utilizing laser spot compression technology and air-assisted nozzles, the laser module delivers better engraving and cutting performance with a wider range of materials to choose from. It can engrave Density Board, Wood, Paper, Leather, Bamboo, Plastic, Rubber, Aluminum Oxide, Stainless Steel and more.

01

Powerful Cutting Ability

Cutting limit in one pass

  • Cut 8mm plywood: 120mm/min, 100% power
  • Cut 15mm pinewood: 50mm/min, 100% power
  • Cut 5mm black acrylic : 50mm/min, 100% power
02

Wide range of material options:

Utilizing laser spot compression technology and air-assisted nozzles, the laser module delivers better engraving and cutting performance with a wider range of materials to choose from. It can engrave Density Board, Wood, Paper, Leather, Bamboo, Plastic, Rubber, Aluminum Oxide, Stainless Steel and more.

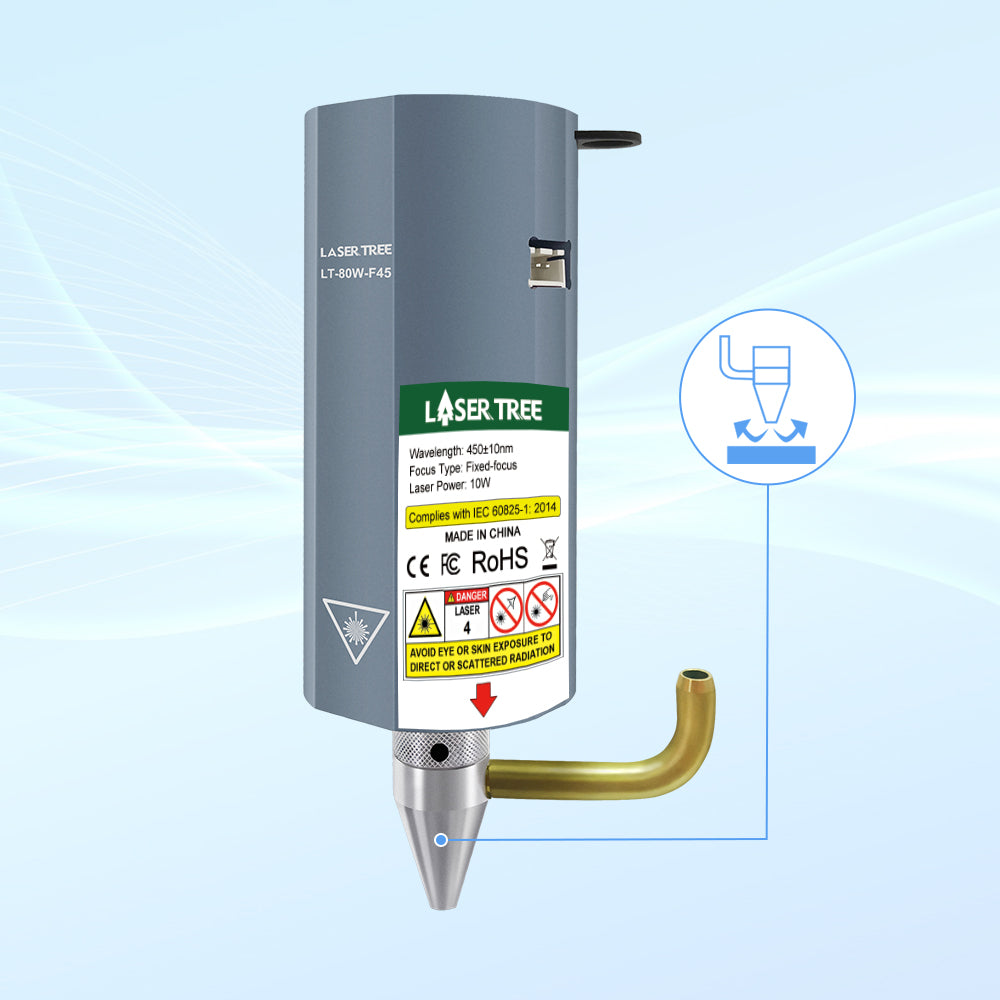

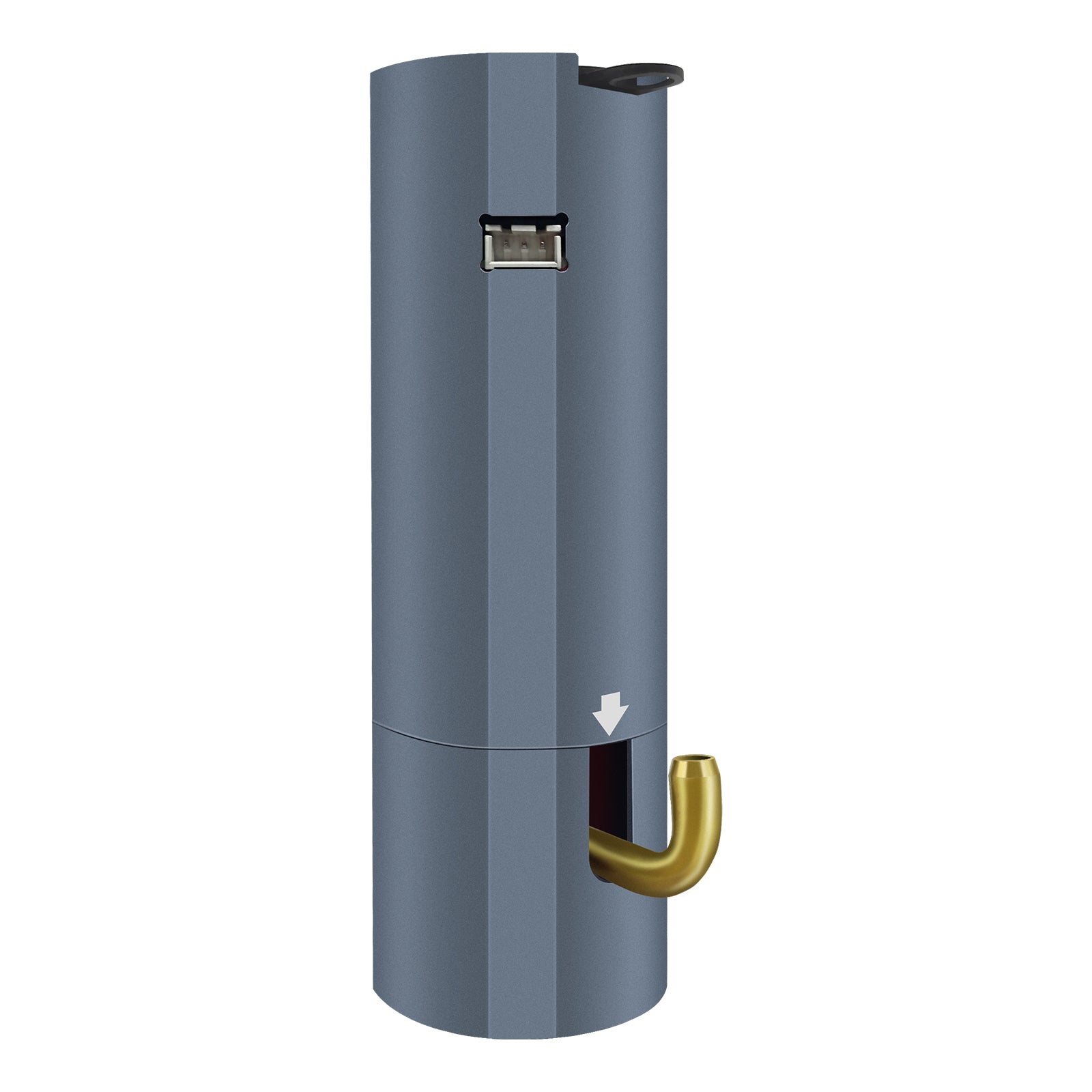

Professional Air Assist

Upgraded 6mm diameter air nozzle has an advanced hydrodynamic design, which better reduces air resistance and faster jet airflow.

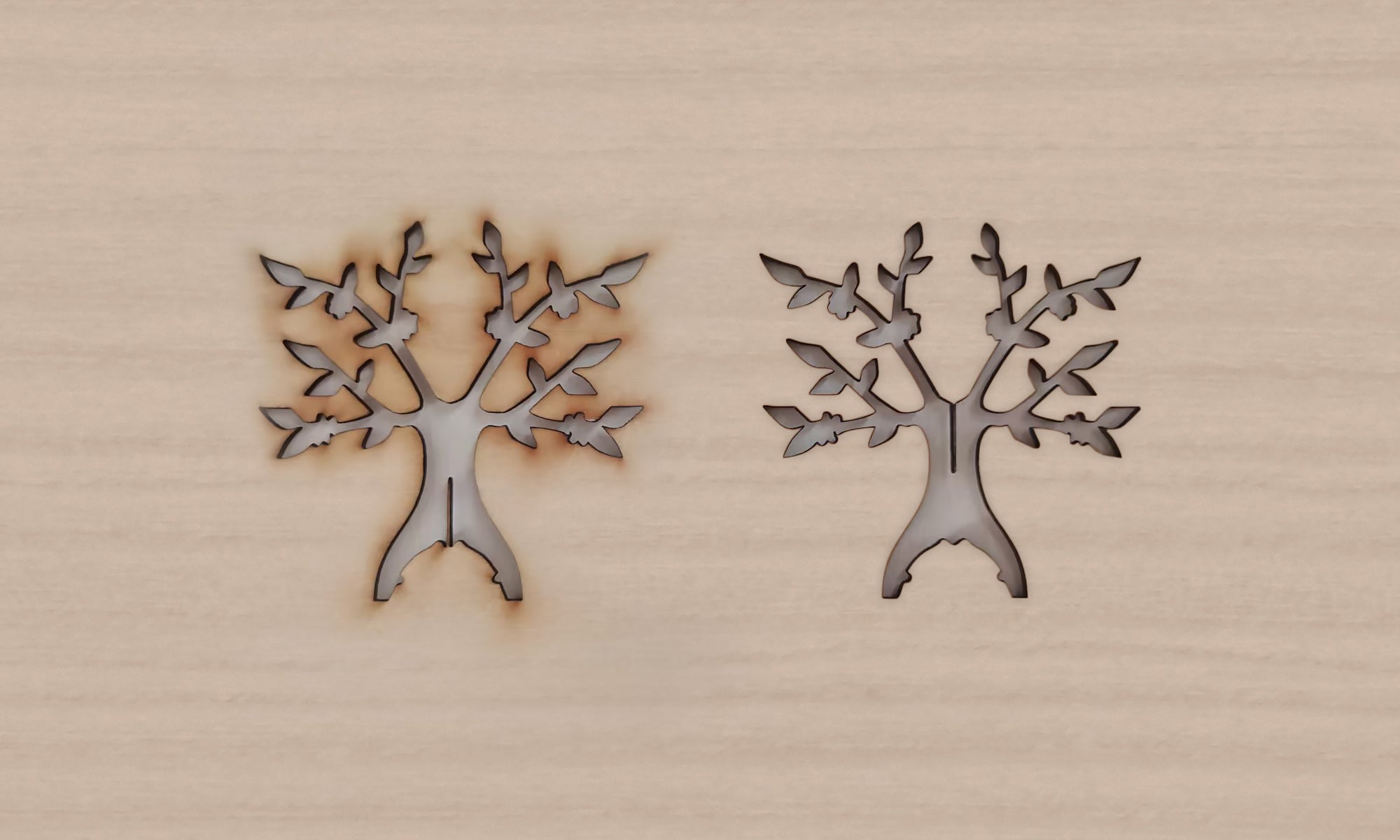

With Air Assist VS No Air Assist

Blowing through the air nozzle to get clean-cut edges, improve cutting performance
without Air Nozzle:  Scorched Edges
with Air Nozzle:  Clean-Cut Edges

Before

After

Drag

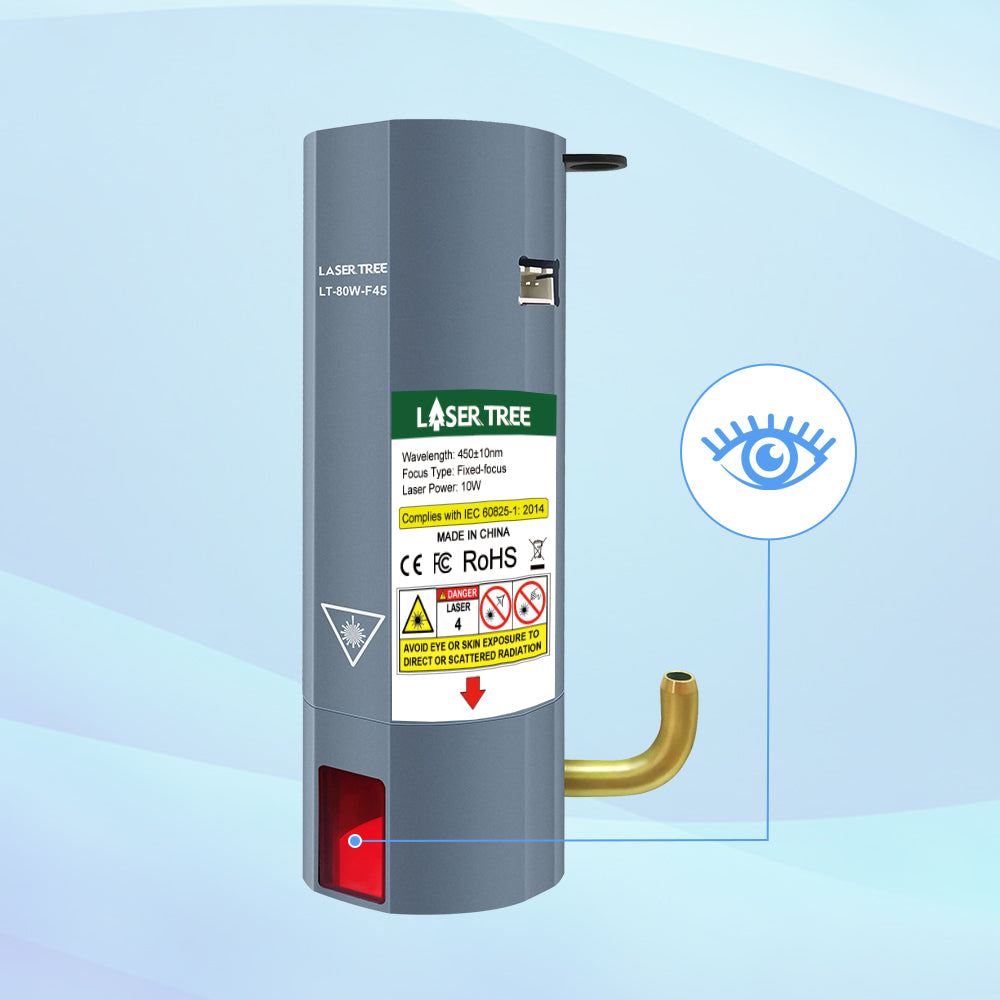

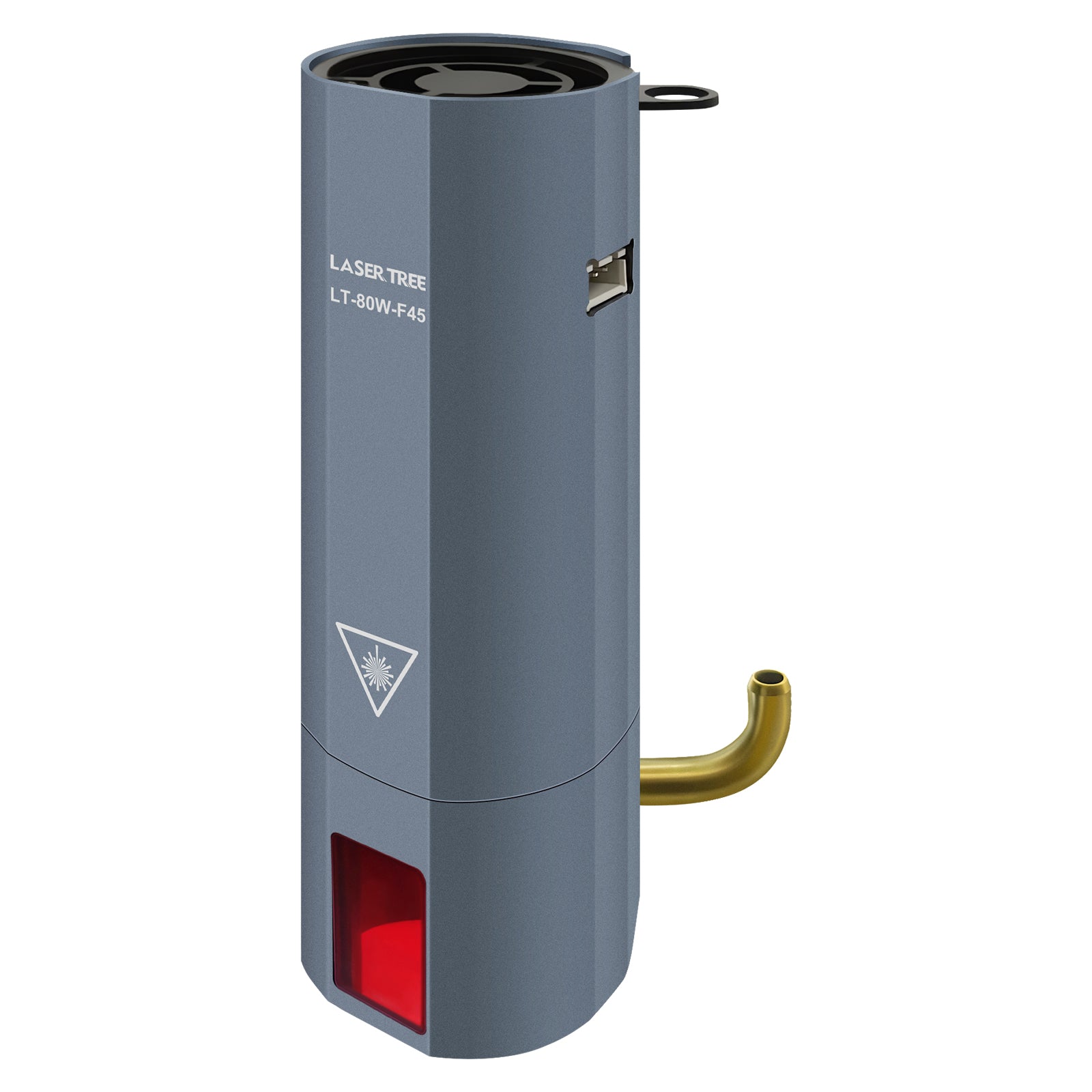

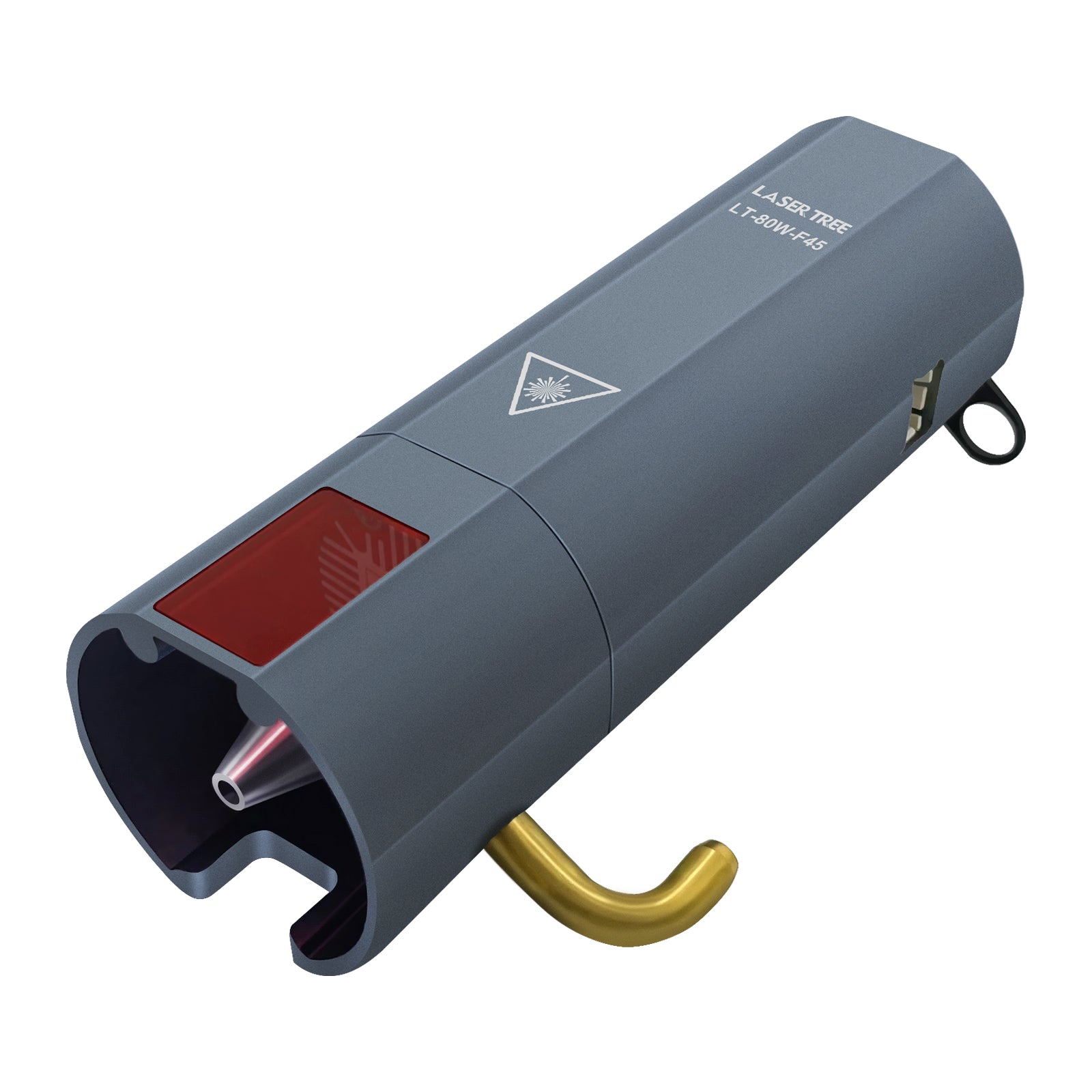

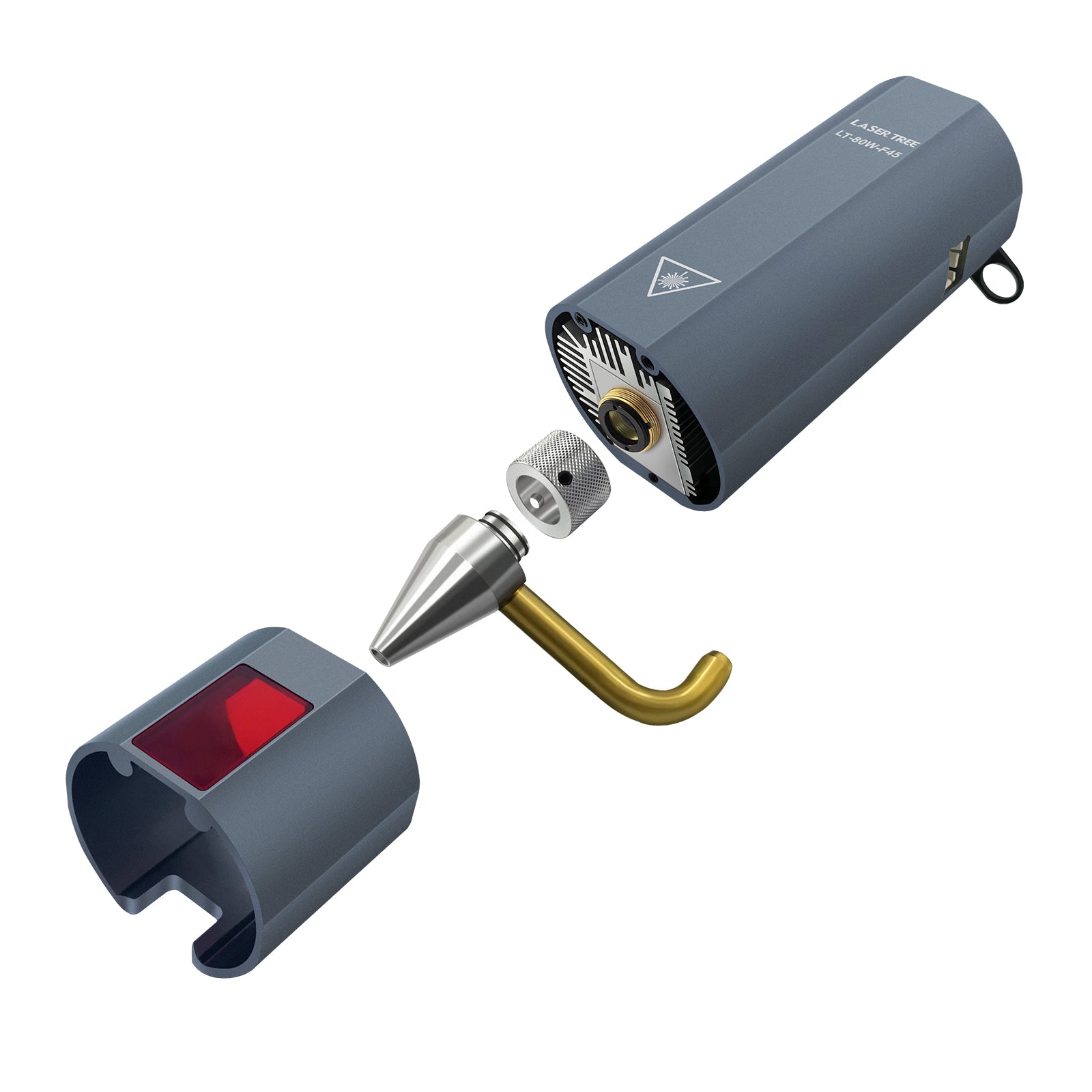

Magnetic Protective Cover

With a laser protective cover, it can effectively filter blue light when engraving or cutting with laser head, safe and convenient

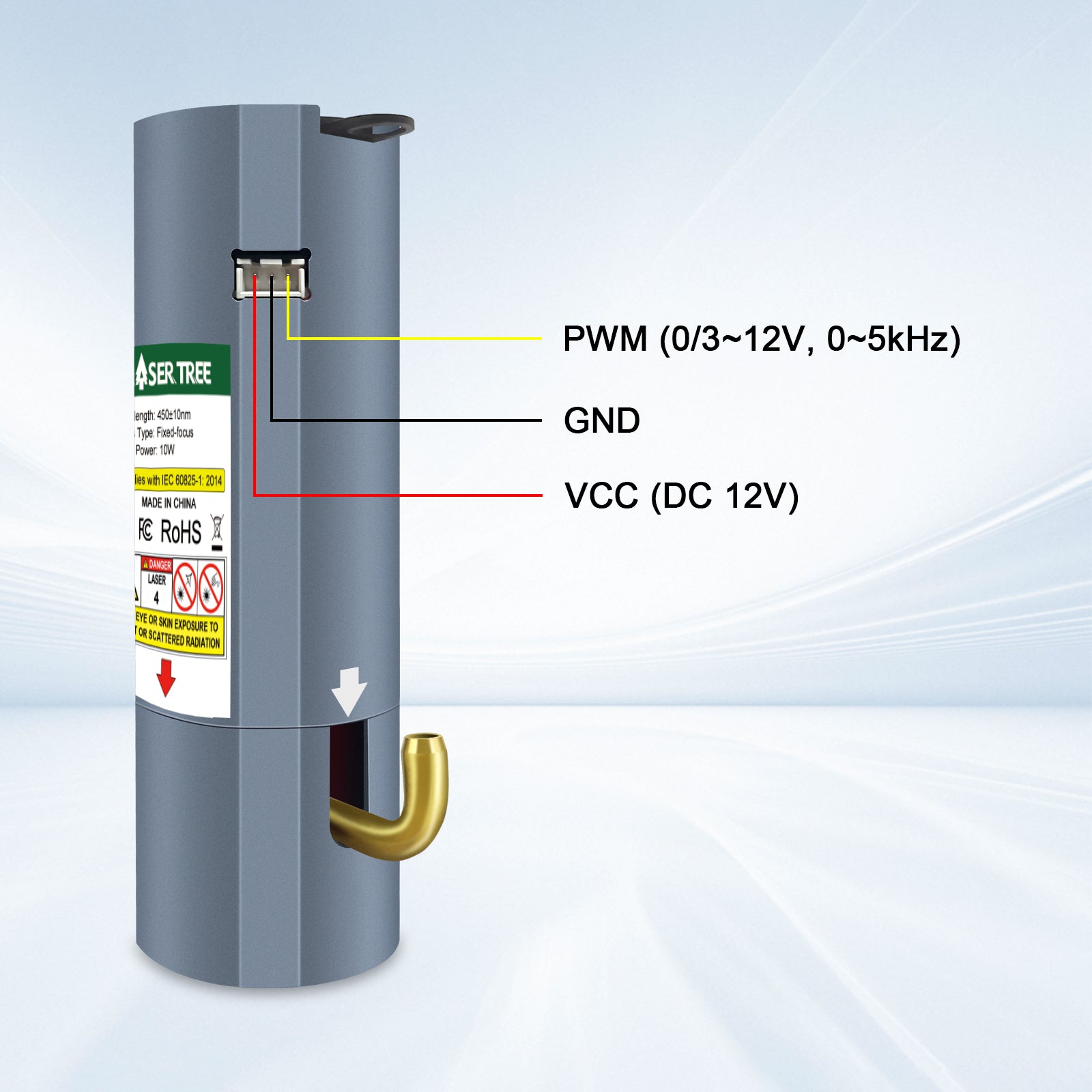

PWM & GND & VCC

PWM (0/3~12V, 0~5kHz)
GND
VCC(DC 12V)

Reference Settings for Cutting

Reference Settings for Engraving

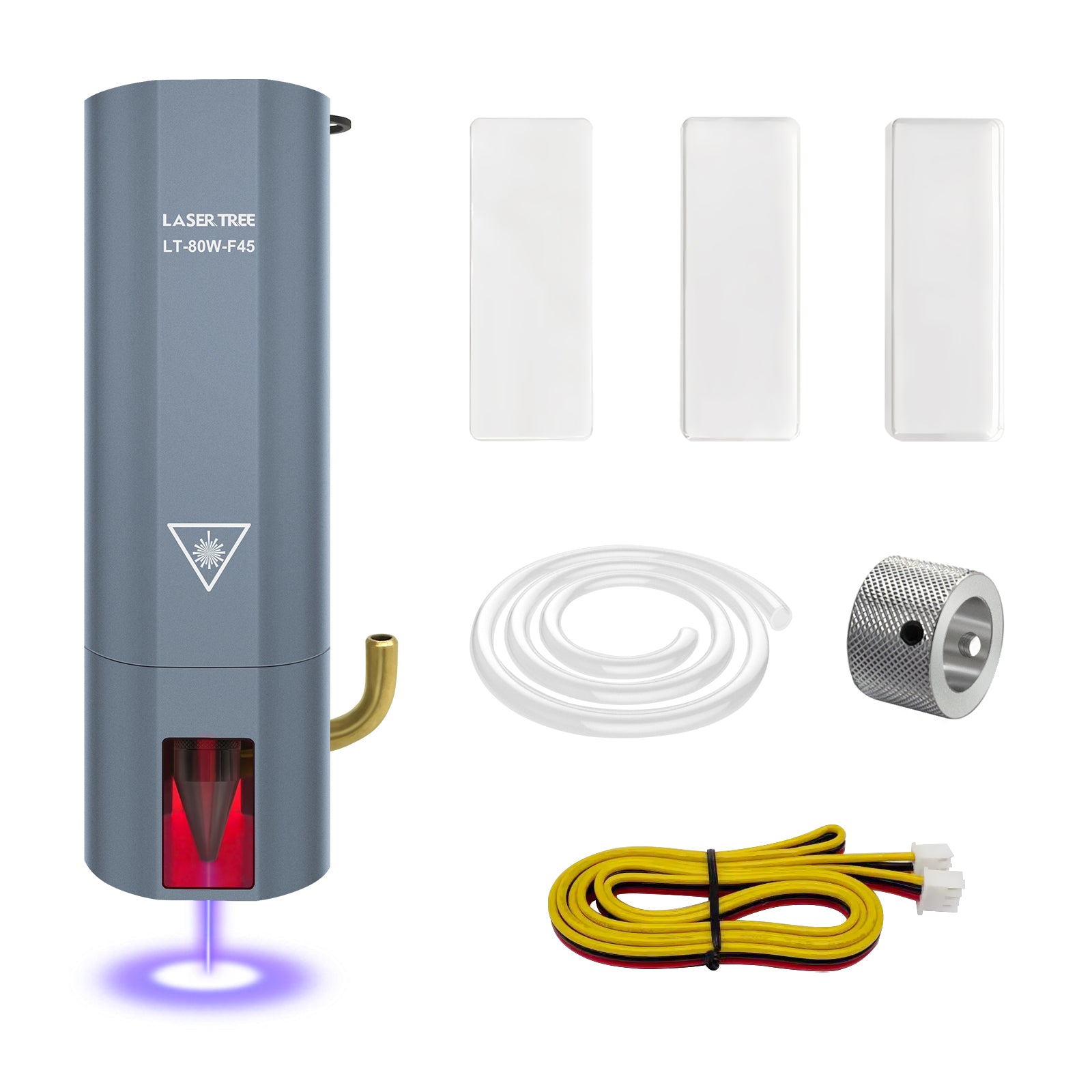

Package Lists
