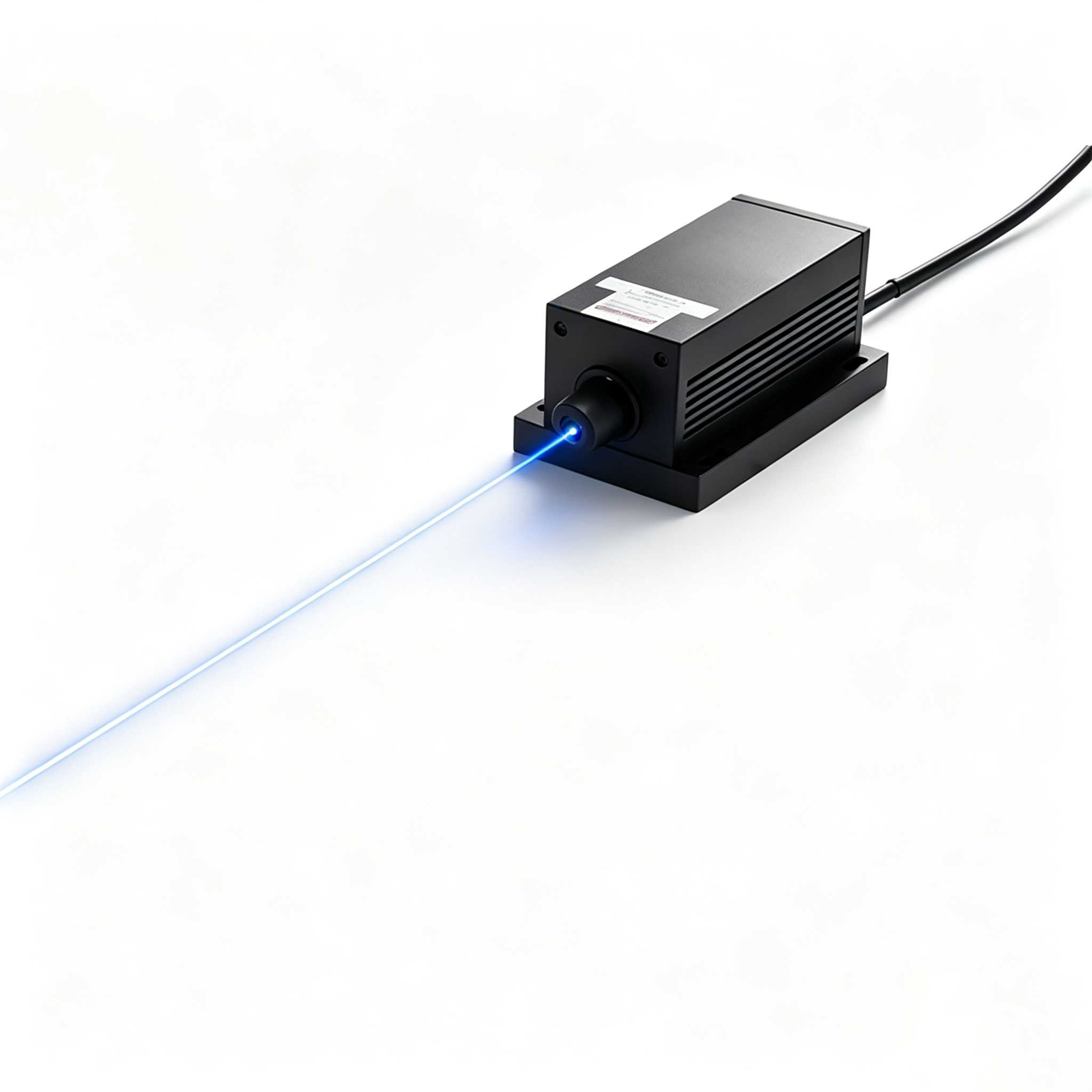

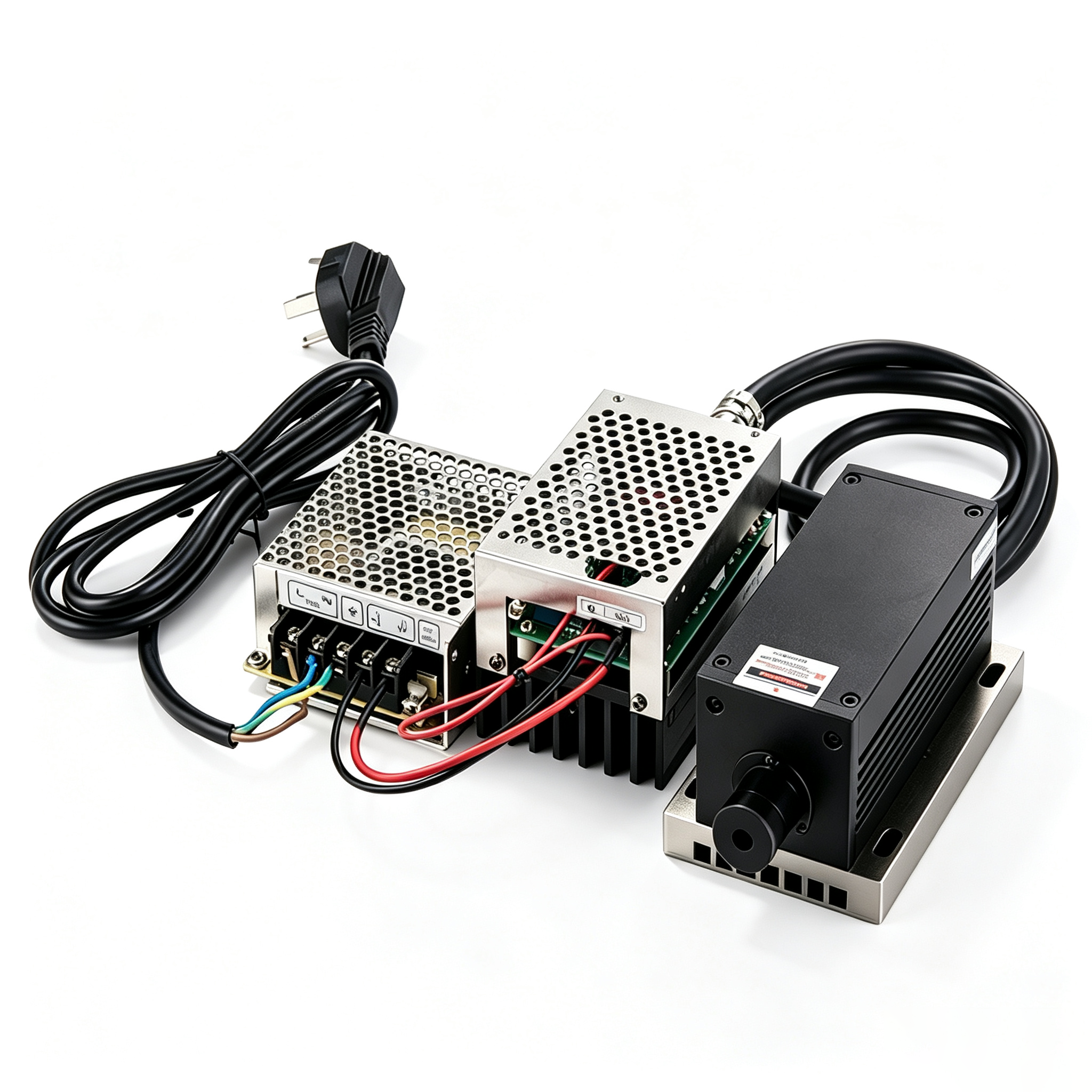

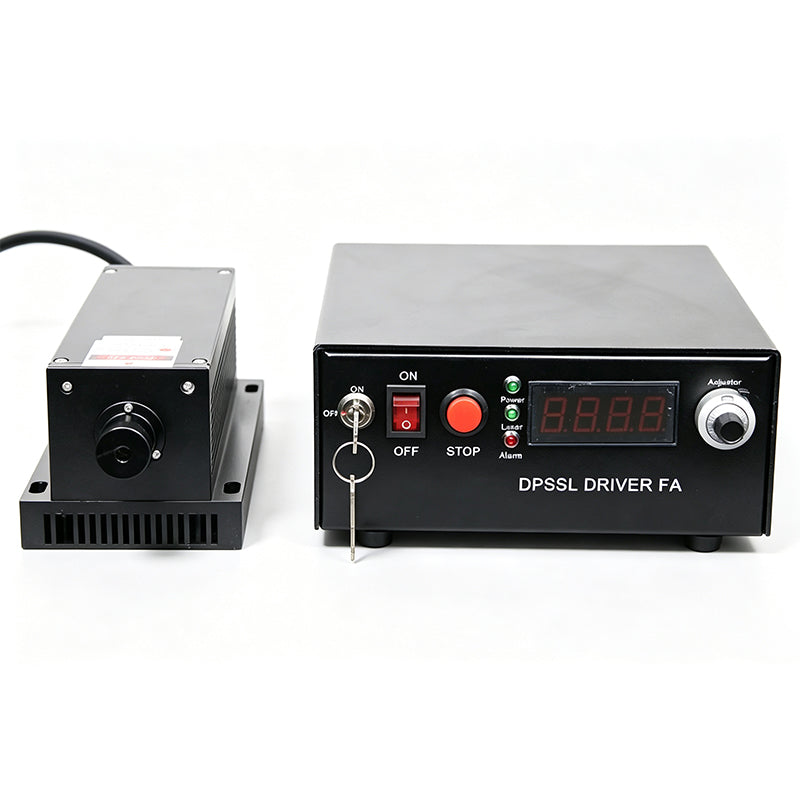

LASER TREE 473nm 180mW/200mW/300mW/400mW/500mW/600mW Blue DPSS Laser Diode Pumped Solid State Laser

Laser Specifications

LT-LM-PUMP-473-180~600M-H.pdf

Features

• Product Name: LT-LM-PUMP-473-180~600M-H
• Output Wavelength: 473±1nm
• Output Power: 180mW, 200mW, 300mW, 400mW, 500mW, 600mW
• Spatial mode: Near TEM00
• Operating mode: CW or Modulation
• Modulation: CW, Analog & TTL modulation 0~30 kHz
• Beam Diameter(1/e²): 3 mm
• Beam Divergence (Full angle): 1.5 mrad
• Power Stability:  <±5% per 2 hrs
• Warm Up Time: <5 minutes
• MTTF(mean time to failure): 10000 hrs

Applications

• Lidar
• Thermal printing
• Material Inspection
• Scanning Biochemistry
• Laser Alignment
