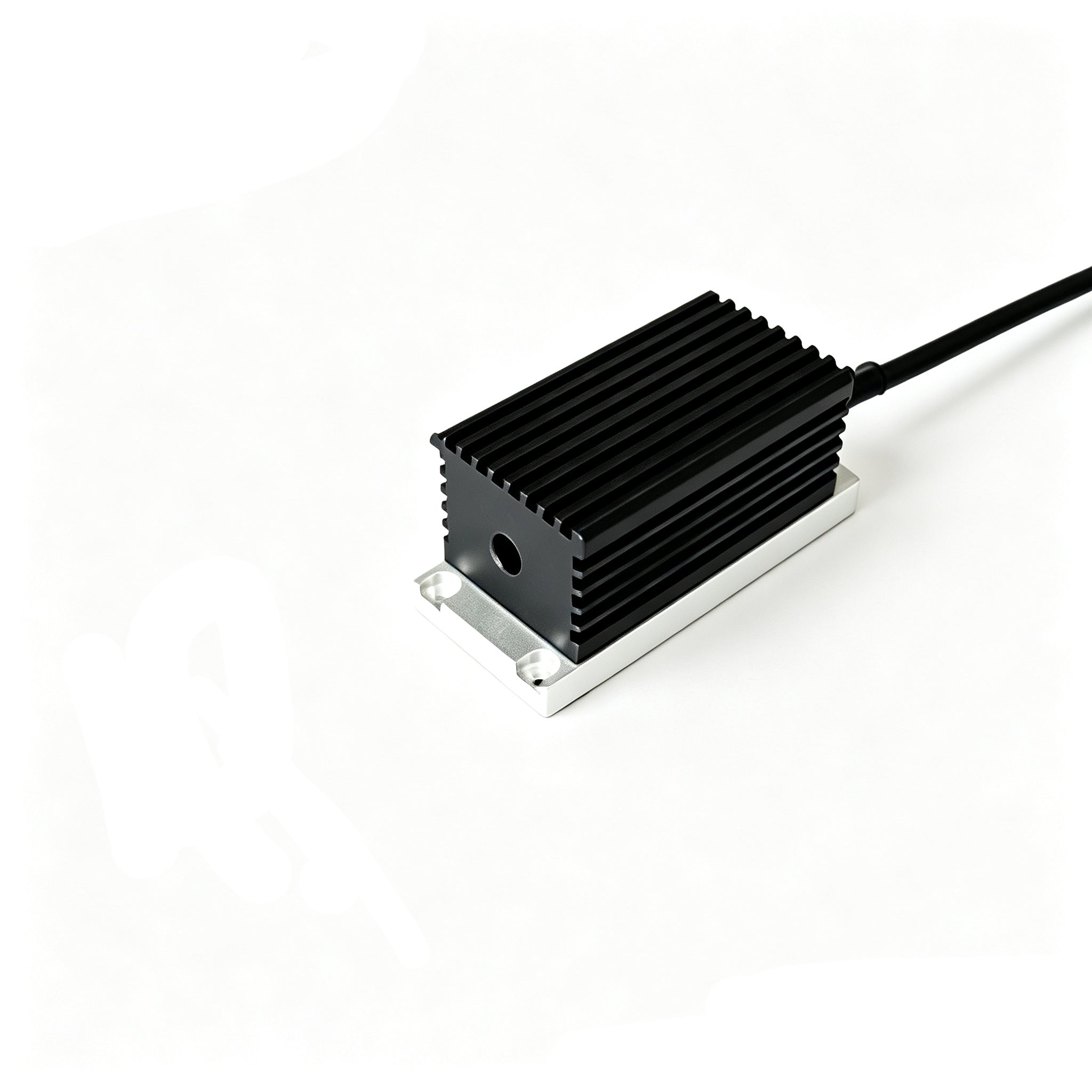

LASER TREE 488nm 20mW/30mW/50mW Blue Semiconductor Laser

Laser Specifications

LT-LM-488-20~50M-CHR.pdf

Features

• Product Name: LT-LM-488-20~50M-CHR
• Output Wavelength: 488±5nm
• Output Power: 20mW, 30mW, 50mW
• Spatial mode: TEM00
• Operating mode: CW or Modulation
• Modulation: CW, Analog & TTL modulation 0~30 kHz
• Beam Diameter(1/e²): 3.65 mm
• Beam Divergence (Full angle): <0.3 mrad
• Power Stability:  <2% per 4 hrs
• Warm Up Time: <1 minutes
• MTTF(mean time to failure): 10000 hrs

Applications

• Lidar
• Thermal printing
• Material Inspection
• Scanning Biochemistry
• Laser Alignment
