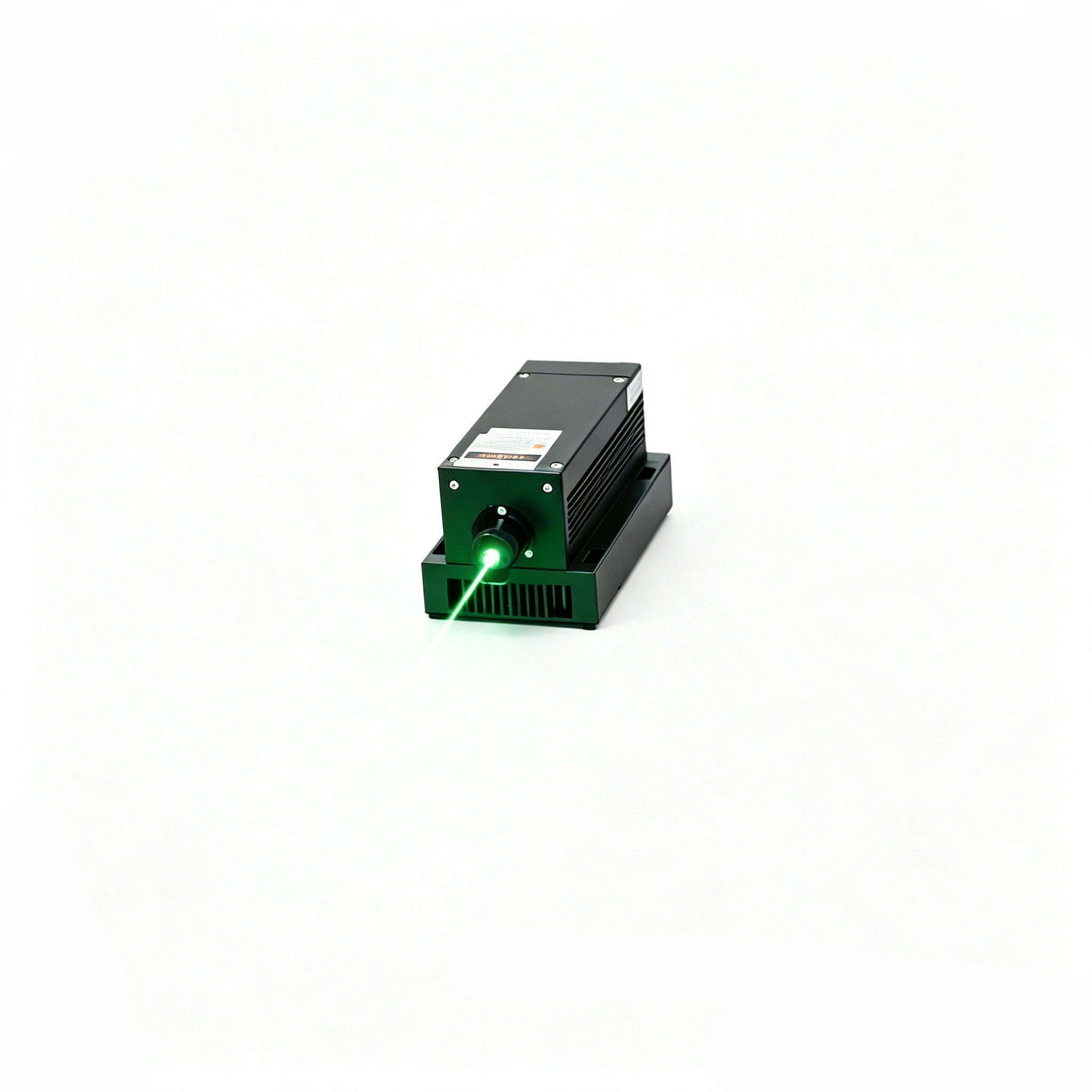

LASER TREE 532nm 800mW/900mW/1000mW/1200mW/1500mW Green Laser Pumped Solid State Laser
LASER TREE 532nm 800mW/900mW/1000mW/1200mW/1500mW Green Laser Pumped Solid State Laser
LASER TREE 532nm 800mW/900mW/1000mW/1200mW/1500mW Green Laser Pumped Solid State Laser
LASER TREE 532nm 800mW/900mW/1000mW/1200mW/1500mW Green Laser Pumped Solid State Laser
LASER TREE

LASER TREE 532nm 800mW/900mW/1000mW/1200mW/1500mW Green Laser Pumped Solid State Laser

Sale price$1,479.00
Wavelength: 532nm
Power: 800mW
Power Supply: OEM Power Supply

Laser Specifications

LT-LM-PUMP-532-800~1500M-H.pdf

Features

  • Product Name: LT-LM-PUMP-532-800~1500M-H
  • Output Wavelength: 532±1nm
  • Output Power: 800mW, 900mW, 1000mW, 1200mW, 1500mW
  • Spatial mode: Near TEM00
  • Operating mode: CW or Modulation
  • Modulation: CW, Analog & TTL modulation 0~30 kHz
  • Beam Diameter(1/e²): <3 mm
  • Beam Divergence (Full angle): <2 mrad
  • Power Stability:  <±3% per 2 hrs
  • Warm Up Time: <5 minutes
  • MTTF(mean time to failure): 10000 hrs

Applications

  • Lidar
  • Thermal printing
  • Material Inspection
  • Scanning Biochemistry
  • Laser Alignment
